Vortex Multi-tube shaker

Choose Models for offer request

Intended

  • iso-9001-copy
  • shape-2601
  • shape-2680
  • iso-9001-copy
  • shape-2601
  • shape-2680
  • Analog or digital control
  • Continuous operation
  • High throughput
  • Pulsating mode possible

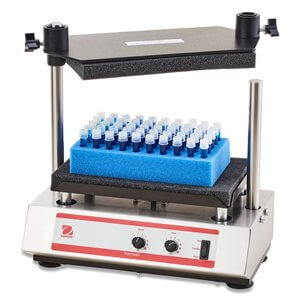

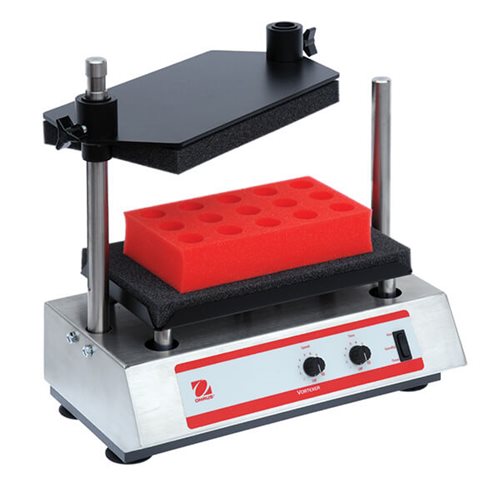

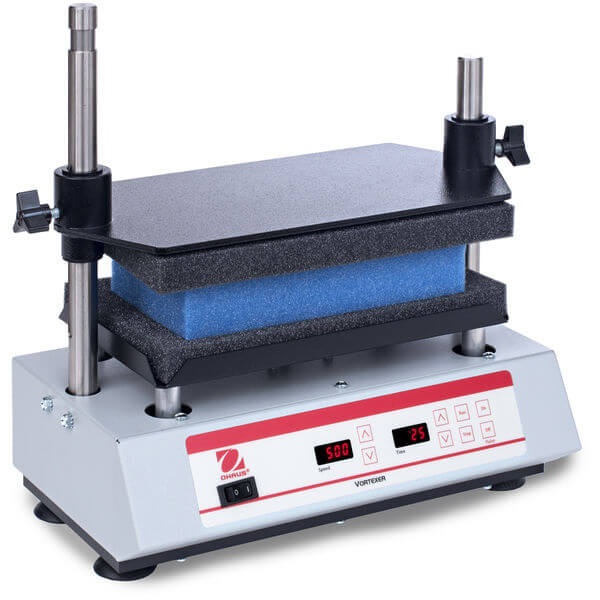

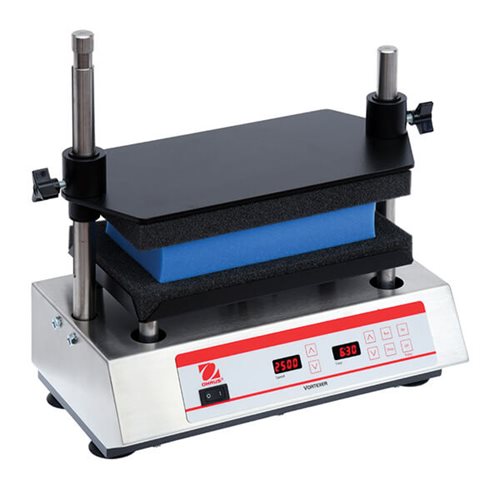

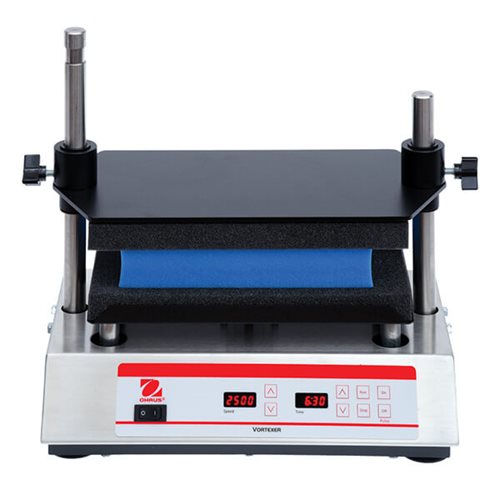

OHAUS' vortex Multi-Tube shakers are ideal for non-contact sample processing with high throughput by easily processing up to 50 samples at a time. The shaker can be customized for your application with 6 different tube racks and an expansion kit. Models are available with an easy-to-clean one-piece stainless steel housing, ideal for clean rooms, or a painted steel housing. Digital models offer a programmable pulse mode to enhance vortexing and achieve more vigorous mixing. Operation can be customized by adjusting the time between pulsing on and off.


Standard Features:

  • Easily process up to 50 samples at a time - The vortex Multi-Tube shaker can be customized to suit your application with 6 different tube racks and an expansion kit.
  • The vortex Multi-Tube shaker uses an easy-to-clean, one-piece stainless steel housing that is ideal for any environment, especially clean rooms.
  • With more demanding samples in mind, the digital models offer a programmable pulse mode to amplify the spin and achieve more vigorous mixing. Operation can be customized by adjusting the interval between pulsing on and off.


Detailed features:

Display: Independent LED displays (speed/time) allow both settings to be viewed simultaneously (digital models).

Programs: Suspensions, genotyping, high-throughput DNA and RNA testing in clinical laboratories.

Power: Detachable power cord ( included).

Communication: N/A.

Design: Stainless steel rack encased in foam for max. 50 test tubes of 12 mm diameter (included), interchangeable foam-covered racks for shaking test tubes of 10-29 mm diameter.

Design features: N/A.

A range of retrofits are available, including: test tube racks, a height increase kit, and a set of tray pads.

Technical specification:

Model* VXMTAL VXMTALB VXMTDG VXMTDGB
Enclosure Stainless steel / one-piece Painted steel / two-piece Stainless steel / one-piece Painted steel / two-piece
Control Analog Digital
Orbit [mm] 3.6
Speed range [rpm] 1200 – 2400 500 – 2500
Operating time Continuous
Range [kg] 4.5
Working conditions 4°C to 40°C, relative humidity 20%-85%, non-condensing
Power supply [V] 230
Tray dimensions [L x W] [mm] 184 × 311
Dimensions [W x D x H] [mm] 384 × 241 × 406
Power [W] 100
Catalog No 30392166 30573832 30392173 30573837

*Detachable 3-wire cable with plug (included), stainless steel housing, foam-covered rack for (50) 12 mm diameter test tubes (included), interchangeable foam-covered racks for shaking test tubes from 10 to 29 mm in diameter (ordered separately).

Model Description
VXMTAL Analog
VXMTALB Analog
VXMTDG Digital
VXMTDGB Digital
