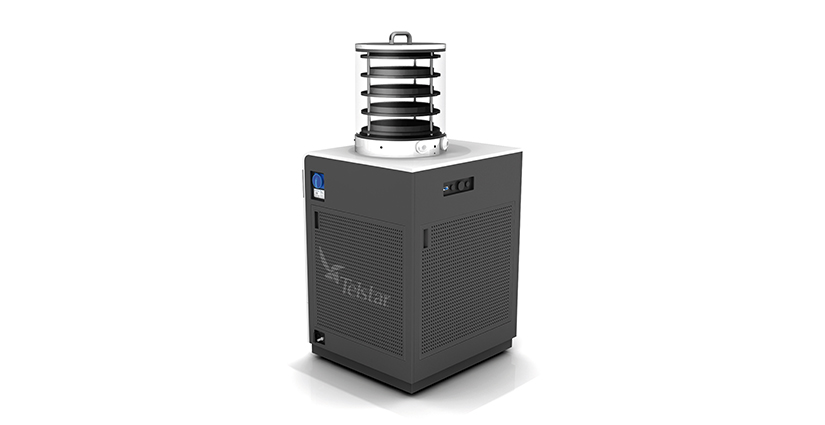

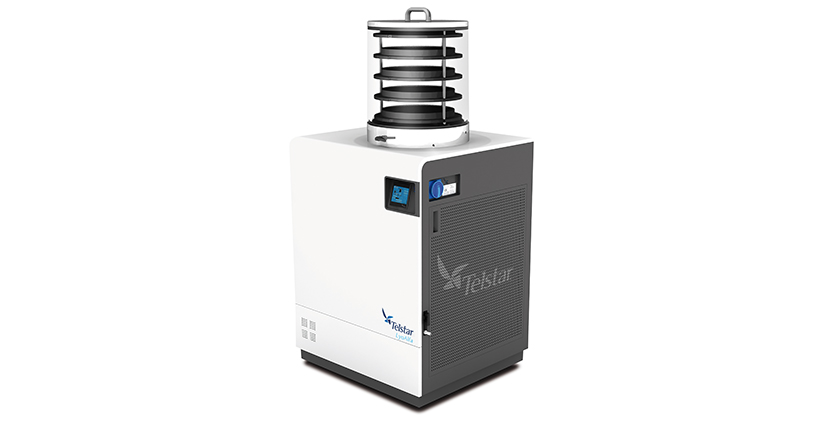

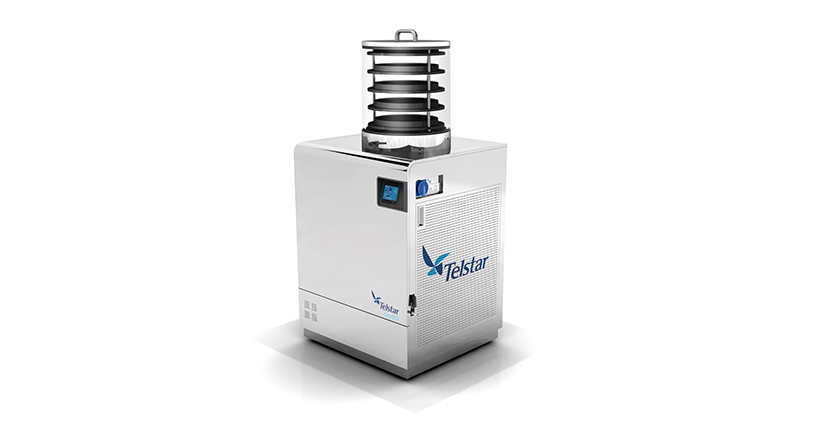

LyoAlfa Telstar freeze-dryers
Choose Models for offer request
Intended
PRODUCT SHEET EN
- Compact housing with wheels
- Automatic pressure control and shelf temperature programming
- Display with touch panel
- Monitoring software for PC connection, RS232 port as standard
- The device allows automatic or semi-automatic operation
- Condenser temperature - 55°C or -85°C
- Automatic vacuum control
- Insulated valve between chamber and condenser
- Side connection for vacuum and drain
- Automatic defrost function

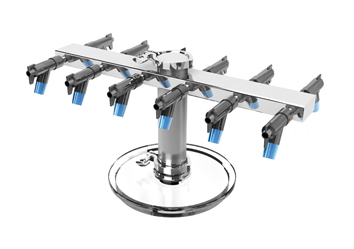

- Wide range of accessories.
Characteristic
Available Models

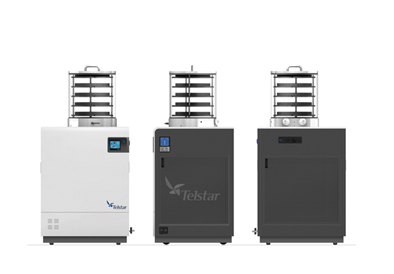

LyoAlpha series freeze-dryers are available in two versions:
- LyoAlfa 15
- LyoAlfa 15 Plus
Each version has a different temperature option: -55°C and -85°C.
These models have a large condenser capacity, allowing for faster drying and freezing speeds, which is suitable for working with biological samples or products with very low eutectics. The units have a built-in two-stage vacuum pump located inside the unit. Most of the lyophilizer's components are made of AISI 316L stainless steel. An easy-to-use control system allows the condenser temperature and vacuum level to be displayed at any time during operation.
Technical data:
| MODEL | LyoAlfa 15-55 | LyoAlfa 15-85 | LyoAlfa Plus 15-55 | LyoAlfa Plus 15-85 |
| ice condenser capacity [kg] | 16,5 | 16,5 | 22 | 22 |
| Final temperature of the condenser[°C] | -55 | -85 | -55 | -85 |
| Number of compressors | 1 | 2 | 1 | 2 |
| Weight [kg] | 170 | 200 | 190 | 220 |
| Overall power [kW] | 2,8 | 3,4 | 3,2 | 4,3 |
Additional information:
Warranty for the set 24 months.
Documents supplied with the device:
User manual in English.
CE declaration of conformity
| Model | Capacity | The final temperature of the capacitor [° C] | Options |
|---|---|---|---|
| LyoAlpha freeze-dryer 15-55 Cat. no.: 37585 | 16, 5 kg | -55 | Number of compressors[ 1 ] |
| LyoAlpha freeze-dryer 15-85 Cat. no.: 39204 | 16,5 kg | -85 | Number of compressors [ 2 ] |
| LyoAlfa 15-55 PLUS freeze-dryer Cat. no.: 37585P | 22 kg | -55 | Number of compressors [ 1 ] |
| LyoAlfa 15-85 PLUS freeze-dryer Cat. no.: 39204P | 22 kg | -85 | Number of compressors [ 2 ] |
