RC 5 recirculating cooler
Characteristic
Available Models
RC 5 basic recirculating cooler
A high-powered device designed for cooling down to -30°C. The model is energy-efficient and uses an environmentally friendly refrigerant. The pump is made of PEEK plastic, has a speed control function, as well as indirect and continuous regulation of maximum pressure and flow rate. It has a temperature stability of +/- 0.1K, so it can operate even under very demanding conditions. The bath is insulated, has a capacity of 7 liters and is equipped with a built-in hopper and drain valve for safety. A hose can be connected to empty the bath, ensuring de-isolation from the thermal liquid. Thanks to the easy-to-open front flap, the air filter can be easily cleaned.

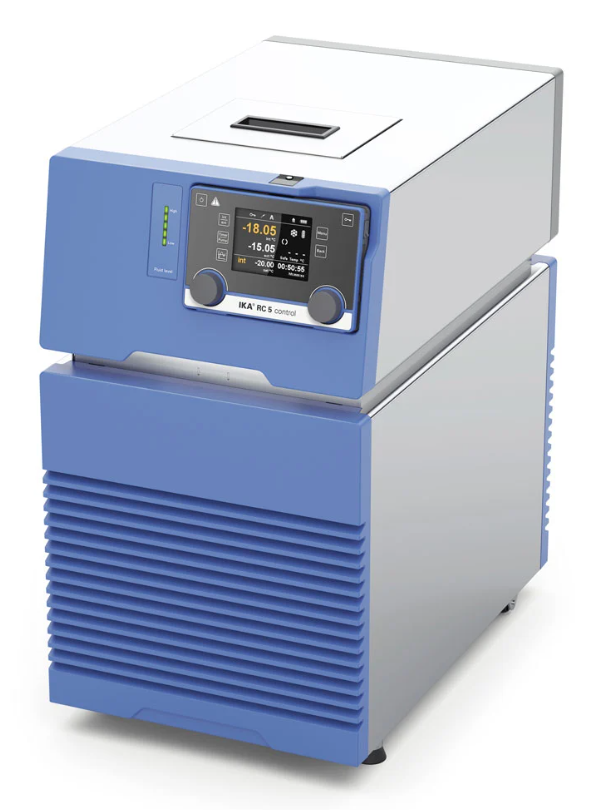

RC 5 control recirculating cooler
A high-powered device designed for cooling down to -30°C. It uses a friendly refrigerant and is energy efficient. The pump is made of PEEK plastic, has a speed control function and indirect and continuous control of maximum pressure and flow rate. Equipped with WiCo wireless controller, which allows personnel to operate the unit safely and conveniently from anywhere. It has a temperature stability of +/- 0.1K, so it can operate even in very demanding conditions. The bath is insulated, has a capacity of 7 liters and is equipped with a built-in hopper and drain valve for safety. A hose can be connected to empty the bath, ensuring de-isolation from the thermal liquid. Thanks to the easy-to-open front flap, the air filter can be easily cleaned.
Technical specification
A high-powered device designed for cooling down to -30°C. The model is energy-efficient and uses an environmentally friendly refrigerant. The pump is made of PEEK plastic, has a speed control function, as well as indirect and continuous regulation of maximum pressure and flow rate. It has a temperature stability of +/- 0.1K, so it can operate even under very demanding conditions. The bath is insulated, has a capacity of 7 liters and is equipped with a built-in hopper and drain valve for safety. A hose can be connected to empty the bath, ensuring de-isolation from the thermal liquid. Thanks to the easy-to-open front flap, the air filter can be easily cleaned.
RC 5 control recirculating cooler
A high-powered device designed for cooling down to -30°C. It uses a friendly refrigerant and is energy efficient. The pump is made of PEEK plastic, has a speed control function and indirect and continuous control of maximum pressure and flow rate. Equipped with WiCo wireless controller, which allows personnel to operate the unit safely and conveniently from anywhere. It has a temperature stability of +/- 0.1K, so it can operate even in very demanding conditions. The bath is insulated, has a capacity of 7 liters and is equipped with a built-in hopper and drain valve for safety. A hose can be connected to empty the bath, ensuring de-isolation from the thermal liquid. Thanks to the easy-to-open front flap, the air filter can be easily cleaned.
Technical specification
Model | RC 5 basic | RC 5 control |
Photo | ||
Type of device | Recirculating cooler | |
Cooling liquid | R290 | |
Amount of cooling liquid | 90g | |
Max. refrigerant pressure | 21 bar | |
Operating temperature | -30 - ambient temp. °C | |
Operating temperature min. | -30°C | |
Operating temperature max. | 80°C | |
Filling volume | 5,0 - 7,0 l | |
Permissible ambient temperature | 5 - 32 °C | |
Power supply | 230V, 50/60 Hz | |
Noise level | 61 dB(A) |
Model | Temperature range [° C] |
---|---|
RC 5 basic | -30°C to +80°C |
RC 5 control | -30°C to +80°C |
