RC 2 recirculation thermostat
Choose Models for offer request
Intended
- available in 5 models: lite, basic, control, GREEN basic, GREEN control
- different cooling ranges available
Characteristic
Available Models

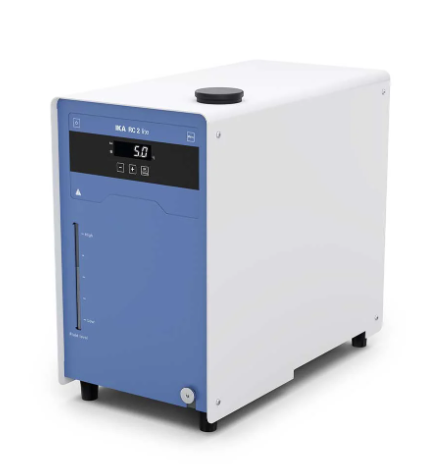

RC 2 lite recirculating cooler
The unit is designed for simple cooling tasks in the temperature range from -10°C. It will work great for rotary evaporators, reflux condensers or as a cooling source for equipment that uses an exchanger to dissipate heat. They have a readily accessible mesh filter that is easy to clean, made of neirust steel. It ensures consistently high performance of the device for many years. This model has a small filling capacity, so it quickly reaches low temperatures. In addition, it has a large working capacity, which allows for a large number of outdoor applications. It is equipped with a powerful pressure and suction pump, which allows it to handle small applications as well as outdoor applications in open water baths simultaneously. It uses natural refrigerant R290, which makes it environmentally friendly.
RC 2 basic recirculating cooler
The device is designed for cooling at temperatures down to -20°C. The model has continuous regulation of maximum pressure and flow rate, and the stability of the maintained temperature is at +/- 0.1K (at -10°C) - so the device will perform well even in difficult conditions. It comes with a hopper and a vent valve, which facilitates safe shunting of the thermal fluid, and an easy-open lid on the front makes it easy to clean the instrument's filter. The bath tank has a capacity of 4 liters.

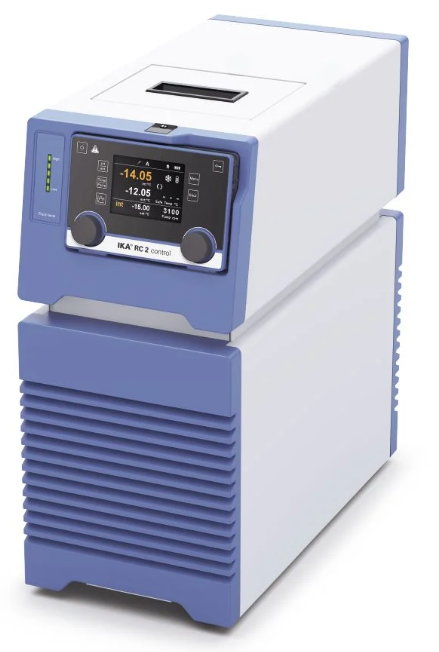

RC 2 control recirculating cooler
The unit is designed for cooling at temperatures down to -30°C, with high efficiency and with a remote controller. It has a speed control function and indirect, continuous control of maximum pressure and flow rate. The stability of the maintained temperature is of the order of +/- 0.05K (at -10°C), so it will work well in even the most difficult conditions. It is equipped with a socket for an external PT100 sensor, which makes it possible to measure and regulate the temperature in the mass of the working medium. Thanks to the WiCo wireless controller it is possible to control the device from any distance (within the range of signal transmission). It comes with a hopper and a vent valve, which facilitates safe shunting of the thermal fluid, and an easy-to-open lid at the front makes it easy to clean the instrument's filter. The bath tank has a capacity of 4 liters.

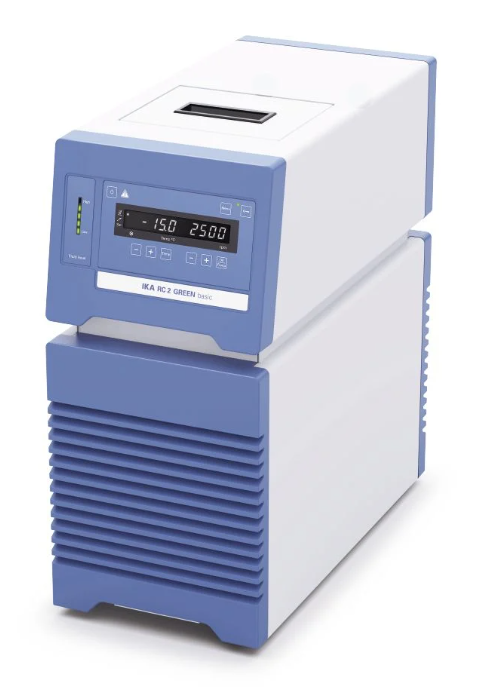

RC 2 GREEN recirculating cooler
Designed for cooling temperatures down to -30°C, the unit has an energy-efficient compressor and uses a natural refrigerant. It provides high cooling capacity with minimal energy consumption. It allows speed regulation and indirect and continuous regulation of maximum pressure and flow rate. It comes with a hopper and a vent valve, which facilitates safe shunting of the thermal fluid, and an easy-open lid on the front makes it easy to clean the instrument's filter. The bath tank has a capacity of 4 liters.

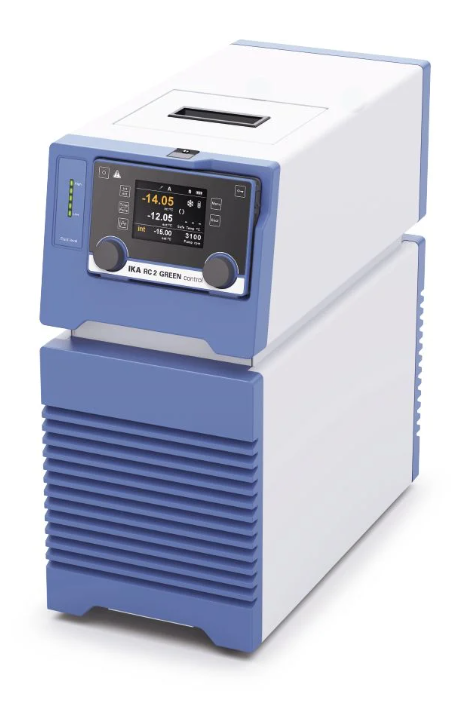

Recirculation coolerRC 2 GREEN control
The unit is designed for cooling at temperatures as low as -30°C. It has a removable WiCo control panel, which allows process assembly and ensures safe operation of the device. It allows speed control and indirect and continuous adjustment of maximum pressure and flow rate. A hopper and vent valve are included to facilitate safe shunting of thermal fluid, and an easy-open lid on the front makes it easy to clean the instrument's filter. The bath tank has a capacity of 4 liters.
Technical specification
The unit is designed for simple cooling tasks in the temperature range from -10°C. It will work great for rotary evaporators, reflux condensers or as a cooling source for equipment that uses an exchanger to dissipate heat. They have a readily accessible mesh filter that is easy to clean, made of neirust steel. It ensures consistently high performance of the device for many years. This model has a small filling capacity, so it quickly reaches low temperatures. In addition, it has a large working capacity, which allows for a large number of outdoor applications. It is equipped with a powerful pressure and suction pump, which allows it to handle small applications as well as outdoor applications in open water baths simultaneously. It uses natural refrigerant R290, which makes it environmentally friendly.
RC 2 basic recirculating cooler
The device is designed for cooling at temperatures down to -20°C. The model has continuous regulation of maximum pressure and flow rate, and the stability of the maintained temperature is at +/- 0.1K (at -10°C) - so the device will perform well even in difficult conditions. It comes with a hopper and a vent valve, which facilitates safe shunting of the thermal fluid, and an easy-open lid on the front makes it easy to clean the instrument's filter. The bath tank has a capacity of 4 liters.
RC 2 control recirculating cooler
The unit is designed for cooling at temperatures down to -30°C, with high efficiency and with a remote controller. It has a speed control function and indirect, continuous control of maximum pressure and flow rate. The stability of the maintained temperature is of the order of +/- 0.05K (at -10°C), so it will work well in even the most difficult conditions. It is equipped with a socket for an external PT100 sensor, which makes it possible to measure and regulate the temperature in the mass of the working medium. Thanks to the WiCo wireless controller it is possible to control the device from any distance (within the range of signal transmission). It comes with a hopper and a vent valve, which facilitates safe shunting of the thermal fluid, and an easy-to-open lid at the front makes it easy to clean the instrument's filter. The bath tank has a capacity of 4 liters.
RC 2 GREEN recirculating cooler
Designed for cooling temperatures down to -30°C, the unit has an energy-efficient compressor and uses a natural refrigerant. It provides high cooling capacity with minimal energy consumption. It allows speed regulation and indirect and continuous regulation of maximum pressure and flow rate. It comes with a hopper and a vent valve, which facilitates safe shunting of the thermal fluid, and an easy-open lid on the front makes it easy to clean the instrument's filter. The bath tank has a capacity of 4 liters.
Recirculation coolerRC 2 GREEN control
The unit is designed for cooling at temperatures as low as -30°C. It has a removable WiCo control panel, which allows process assembly and ensures safe operation of the device. It allows speed control and indirect and continuous adjustment of maximum pressure and flow rate. A hopper and vent valve are included to facilitate safe shunting of thermal fluid, and an easy-open lid on the front makes it easy to clean the instrument's filter. The bath tank has a capacity of 4 liters.
Technical specification
Model | RC 2 lite | RC 2 basic | RC 2 control | RC 2 GREEN | RC 2 GREEN control |
Photo | |||||
Type of device | Recirculating cooler | ||||
Cooling liquid | R290 | R134a | R290 | ||
Amount of cooling liquid | 70g | 230g | 69g | ||
Max. refrigerant pressure | 21 bar | 20 bar | 21 bar | ||
Operating temperature | -10 - ambient temp. °C | -20 - ambient temp. °C | -30 - ambient temp. °C | ||
Operating temp. min | -10 °C | -20 °C | -30 °C | ||
Operating temp. max | 70 °C | 80 °C | 70°C | ||
Filling volume | 1 - 3,5 l | 1,4 - 4,0 l | |||
Permissible ambient temperature | 5 - 32 °C | ||||
Power supply | 230 V, 50/60 Hz | ||||
Noise level | 58 dB(A) | 52 dB(A) | 61 dB(A) |
Model | Temperature range [° C] |
---|---|
RC 2 lite | -10°C to 70°C |
RC 2 basic | -20°C to +80°C |
RC 2 control | - 30°C to +80°C |
RC 2 GREEN | -30°C to +70°C |
RC 2 GREEN control | -30°C to +70°C |
