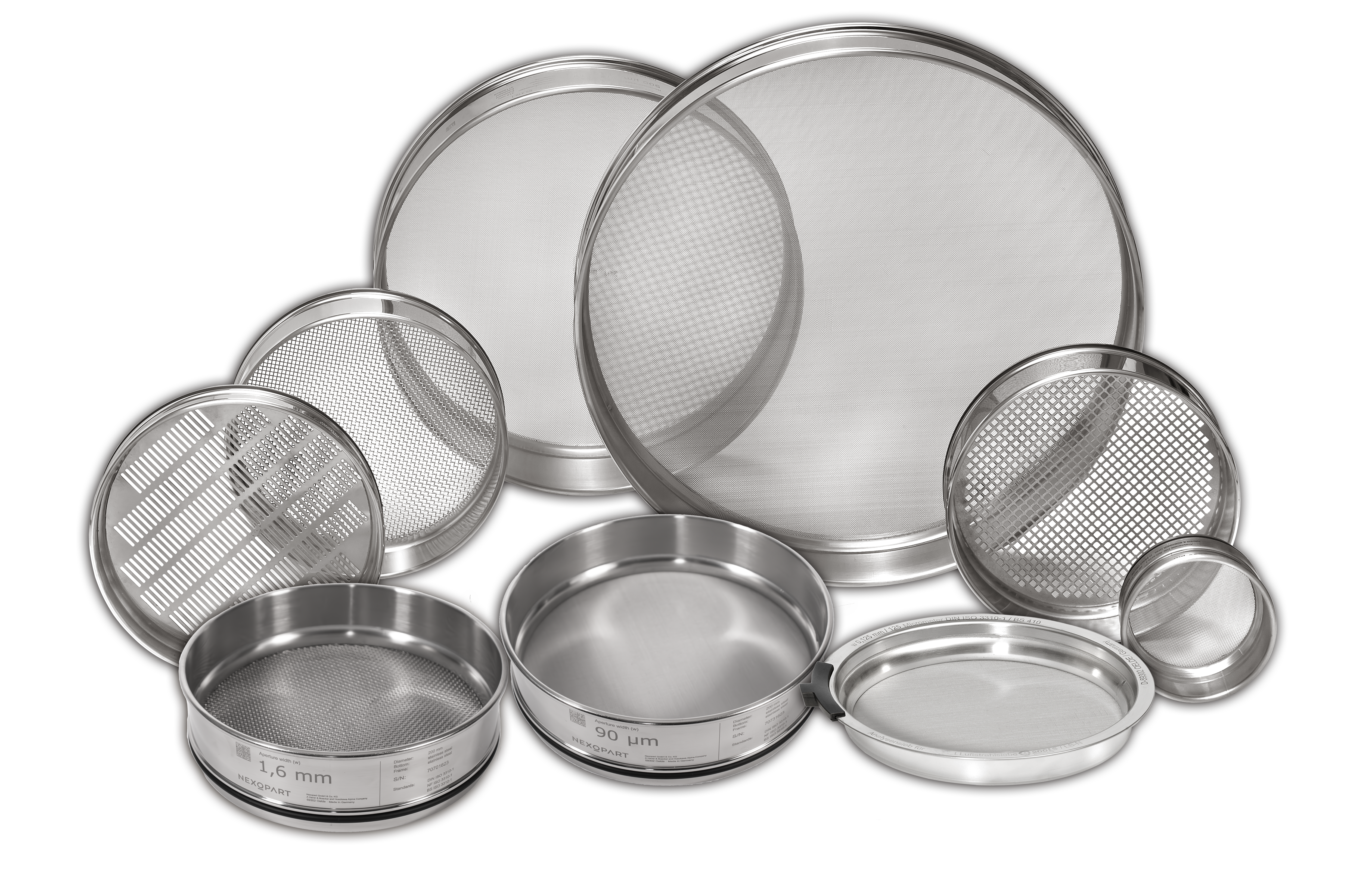

NEXOPART Test Sieves with Stainless Steel Frames
Choose Models for offer request
-
Precise particle size analysis of bulk materials
-
Separation of particles by size using the sieving method
-
Test sieve diameters ranging from 50 to 450 mm
-
Nominal aperture sizes from 5 µm to 125 mm
-
High-quality stainless steel wire mesh made of AISI 316 or AISI 304
-
Durable stainless steel frames made of AISI 304
-
Certification and calibration available according to ISO 3310
-
Suitable for dry and wet sieving applications
Characteristic
Available Models
NEXOPART Test Sieves with Stainless Steel Frames are high-quality measuring instruments designed for precise and reproducible particle size analysis of bulk materials. They are manufactured using test sieve wire cloth supplied by HAVER & BOECKER, ensuring high manufacturing quality.
The stainless steel AISI 304 frames provide excellent durability and stability. Their one-piece construction without cut edges minimises particle adhesion, while the rounded upper and lower edges facilitate handling and cleaning.
The test sieves are available in diameters ranging from 50 to 450 mm, with nominal aperture sizes from 5 µm to 125 mm. Certification and calibration according to ISO 3310, as well as access to a laboratory accredited according to ISO/IEC 17025, support reliable and reproducible particle size analyses.
| Parameter | NEXOPART Test Sieves |
|---|---|
| Manufacturer | NEXOPART |
| Product type | Stainless steel laboratory test sieve |
| Sieve diameters | 50–450 mm |
| Nominal aperture sizes | 5 µm – 125 mm |
| Frame material | Stainless steel AISI 304 |
| Sieve mesh material for apertures below 2.5 mm | Stainless steel AISI 316 |
| Sieve mesh material for apertures above 2.5 mm | Stainless steel AISI 304 |
| Tension ring material | Stainless steel AISI 304 |
| Frame construction | One-piece, rounded edges |
| Sieve cloth attachment | Welded to the tension ring |
| Marking | Laser marking, Data Matrix code |
| Wet sieving seal | PVC sealing ring |
| Certification / calibration | ISO 3310 |
| Calibration laboratory accreditation | DAkkS, ISO/IEC 17025 |
| Model | Dimensions |
|---|---|
| 50 | 50 mm |
| 76,2 | 76,2 mm |
| 100 | 100 mm |
| 120 | 120 mm |
| 150 | 150 mm |
| 200 | 200 mm |
| 203 | 203 mm |
| 250 | 250 mm |
| 300 | 300 mm |
| 305 | 305 mm |
| 315 | 315 mm |
| 350 | 350 mm |
| 400 | 400 mm |
| 450 | 450 mm |
