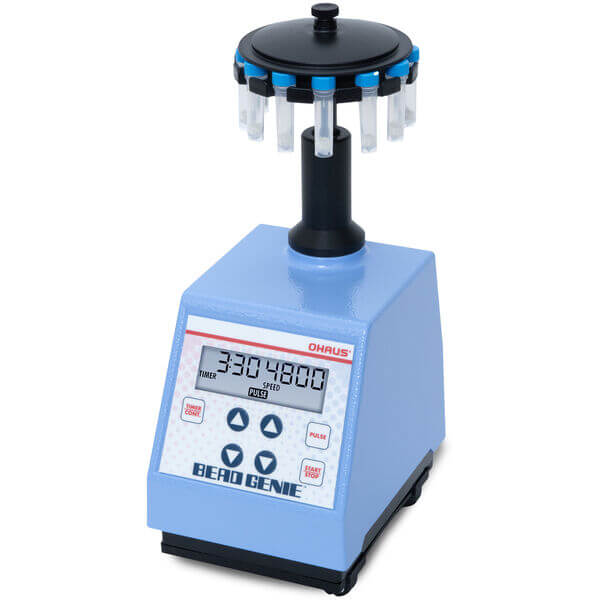

Bead Genie BH3 Ball Homogenizer
Choose Models for offer request
Intended
-
DOCUMENTS TO DOWNLOAD
DATA SHEET BEAD GENIE BH3 EN
USER MANUAL BEAD GENIE BH3 EN, FR, DE, IT, ES- Reciprocating motion
- High speed
- Adapted to different size samples
- 11 Factory Programs
- LCD display with backlight
- Small size
- Durable
- Excellent cost efficiency
Characteristic
Available Models
OHAUS's laboratory ball homogenizer is an efficient solution for grinding, lysis, grinding, mixing, and homogenizing samples. It is perfect for analyzing DNA, RNA and proteins (from mammalian tissue, plants, soil, seeds, fungi, bacteria, viruses and other cells), cell lysis, PCR, or gene expression. The high-speed reciprocating motion enables rapid sample processing.
Advantages of the device:
- Support for many different sample and tube configurations
When it comes to efficient grinding, the high-throughput lysis homogenizer is one of the most flexible models on the market. It comes with four chucks for easy sample processing.
- Increased Productivity with High Throughput Sample Processing
This versatile homogenizer enables high-throughput grinding and is ideal for using many types of test tubes, microplates, well plates, and other sample containers.
- Choose the optimal speed and time using 5 factory programs
No more guesswork when preparing your sample. Eleven pre-loaded programs, optimized for speed and time, allow you to easily process the most frequently tested samples, such as bacteria, fungi, and plant and animal tissues.
Detailed Features:
- Display: Easy-to-read LCD display with backlight.
- Programs: Cell lysis, tissue homogenization, DNA/RNA extraction, protein extraction, microbial cell disruption, yeast cell lysis, bacterial cell disruption, bacterial and fungal cell lysis, sample processing, plant tissue grinding, soil sample homogenization
- Power Supply: Supports 100-240V AC power inputs, power adapter and cord included.
- Communication: Not Applicable.
- Construction: Coated aluminum housing and bottom plate, rubber feet, piston, protective sleeve.
- Design features: Tool-free tube holders, countdown timer, 6 kg solid metal cast for stability and anti-movement during operation, 5 ball sizes: 0.1 mm, 0.5 mm, 2.4 mm, 3.2 mm and 5 mm.
Specifications:
|
Model |
Bead Genie BH3 |
|
Speed range [rpm] |
500 to 4800 beats per minute |
|
Controls |
Digital |
|
Movement |
reciprocating, 19 mm |
|
Clock |
1 second - 99 min |
|
Pulse - On/Off Time |
1 second - 99 minutes |
|
Maximum capacity [g] |
3 tubes of 50 ml; 12 microtubes with a capacity of 1.5/2.0 ml; 6 x 15 ml tubes |
|
Working conditions |
0°C-38°C, 95%RH, non-condensing |
|
Power supply |
100V-240V, 1.5A 50/60Hz |
|
Dimensions [L x W x H] cm |
165 mm x 330 mm x 122 mm (LxHxW) |
|
Net weight [kg] |
6 kg |
|
Part number |
SY-B102EU |
|
Optional accessories ordered separately |
|
Genie 83041297 Ball Sample Set |
|
Stainless Steel Balls , 5mm Stainless Steel 316 83041298 |
|
Disruptor Beads BBs, 0.5 mm 375g (8fl. oz.) 8304301 |
|
Lysis tube 100 x 2 ml, ZrO2 beads 100 μm 30391402 |
|
Lysis tube 100 x 2 ml ZrO2 beads 400 um 30391404 |
|
Lysis tube 100 x 2 ml Zr02 800 um 30391405 |
|
Lysis tube 100 x 2 ml ZrO2 beads 1.4 mm 30391406 |
|
Lysis tube 100 x 2 ml, 3 mm, ZrO2 beads 30391408 |
| Model | Speed [rpm] |
|---|---|
| Bead Genie BH3 | 500 to 4800 beats per minute |
