Autoclaves Advance PRO
Choose Models for offer request
Intended
- Capacity 16 and 22 liters
- CoolTech technology
- FlexiRack system
- HTS system
- LCD display
Characteristic
Available Models
The Advance Pro series of autoclaves simultaneously provides sterilization cycles with vacuum (Class B) and cycles without vacuum (Class N). The new features simplify and streamline the daily sterilization of reusable medical instruments.

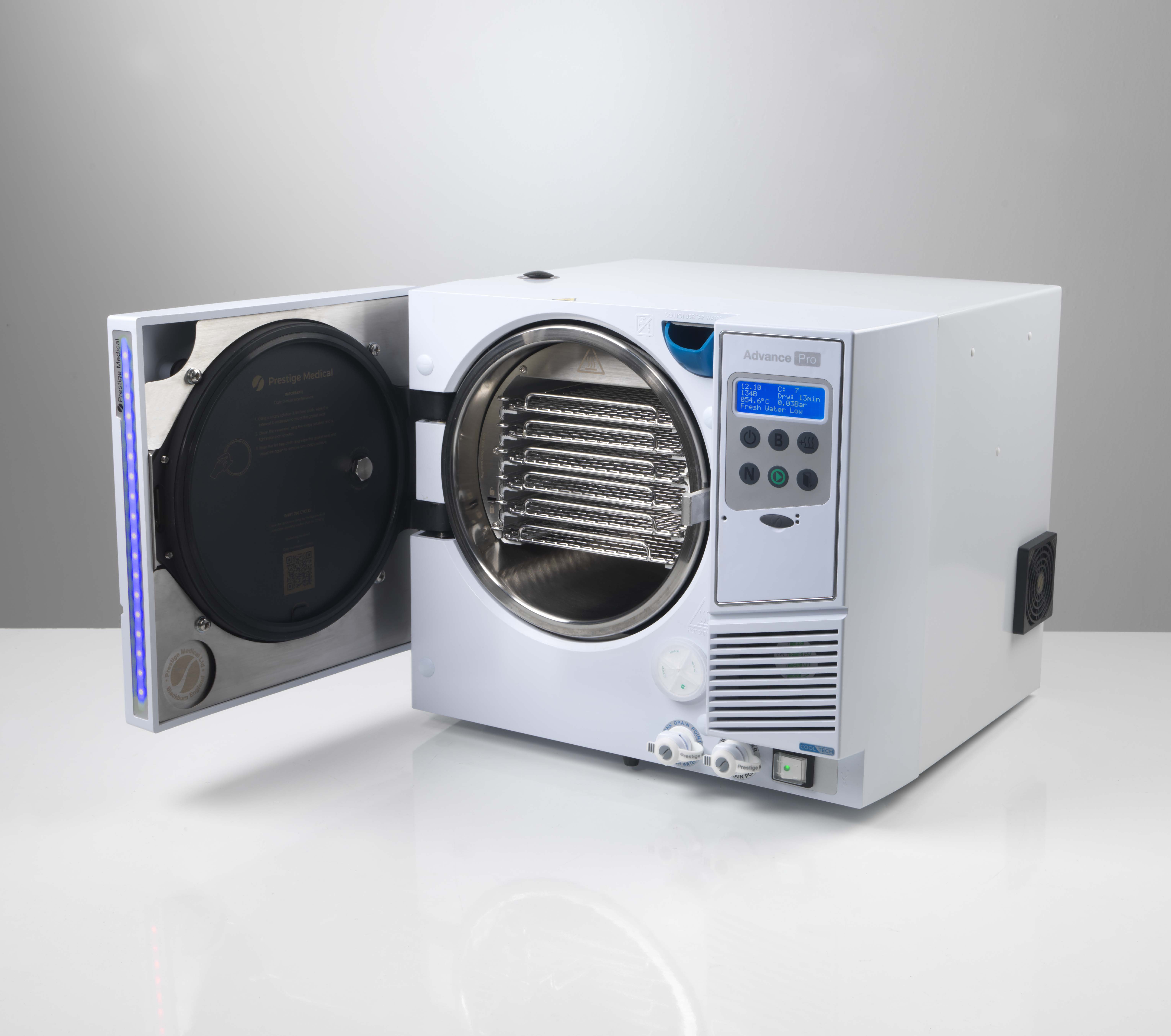

The autoclaves use CoolTech technology to provide efficient cooling and achieve shorter sterilization cycle times. FlexiRack is a shelf configuration system unique in the autoclave class. It is an aluminum rack consisting of 12 support rails and 6 stainless steel trays allowing up to 20 different configurations. Enhanced drying performance is provided by the HTS (Heat Transfer System), which allows the high thermal conductivity of aluminum to be fully utilized. The Advance Pro is also equipped with an illuminated sterilization cycle progress bar (6 color indicators located on the door display the next steps). System indicator with choice of direct feed and drain options. A clear, backlit LCD display with a 6-button user interface ensures safe and correct operation.
| Technical specification | Advance PRO 16 | Advance PRO 22 |
|
Volume [l] |
16 |
22 |
|
Height [mm] |
410 |
410 |
|
Depth [mm] |
410 |
410 |
|
Width [mm] |
450 |
580 |
|
Weight [kg] |
39,5 |
43,0 |
|
Chamber diameter [mm] |
250 |
250 |
|
Chamber length [mm] |
340 |
470 |
|
Max tool length [mm] |
320 |
450 |
|
Max load capacity without vacuum* [kg] |
6 |
6 |
|
Max load capacity with vacuum* [kg] |
6 kg (unpackaged) 2 kg (packaged) 1 kg (pores) |
6 kg (unpackaged) 2 kg (packaged) 1 kg (pores) |
|
Temperature/sterilization time |
134°C/3,5 min 134°C/18 min 121°C/15,5 min |
134°C/3,5 min 134°C/18 min 121°C/15,5 min |
|
Pressure [bar] |
2,05 |
2,05 |
|
Power supply [V] |
230 |
230 |
|
Power [W] |
2200 |
2200 |
* package size 110x110x50 mm
| Model | Capacity |
|---|---|
| Advance PRO 16 | 16 [L] |
| Advance PRO 22 | 22 [L] |
