Schuett Phoenix burner
Choose Models for offer request
Intended
- Power supply :100-240V, 50/60 Hz
- Weight: 1000 g
- Dimensions SxGxW: 125 x 160 x 85 [mm].
- Powered by natural gas or propane-butane gas
- ON/OFF switch
- Flame adjustment with a knob
- Made of stainless steel
- Protection against overheating
- Automated gas shut-off
- Replaceable head
Characteristic
Available Models
For heating and flame sterilization. Modern Bunsen burners combining a high level of safety with high quality workmanship. Safety guarantees are provided by automatic shut-off of the gas supply in case the flame does not initiate after 10 seconds or if the burner is flooded.
Possible manual control, foot pedal or motion sensor depending on the model. Adapted for use in microbiological chambers and chemical laboratories.
Can be powered by natural gas (mains supply) or propane/butane cartridges. The "Push-and-Twist" mechanism of the burner head excludes the need for tools during standard cleaning. The burners have an integrated tripod for clockwise or counterclockwise rotation.
The burner meets the requirements of DIN 30665 part 1, DIN-DVGW Reg.NG-2211AR0750.

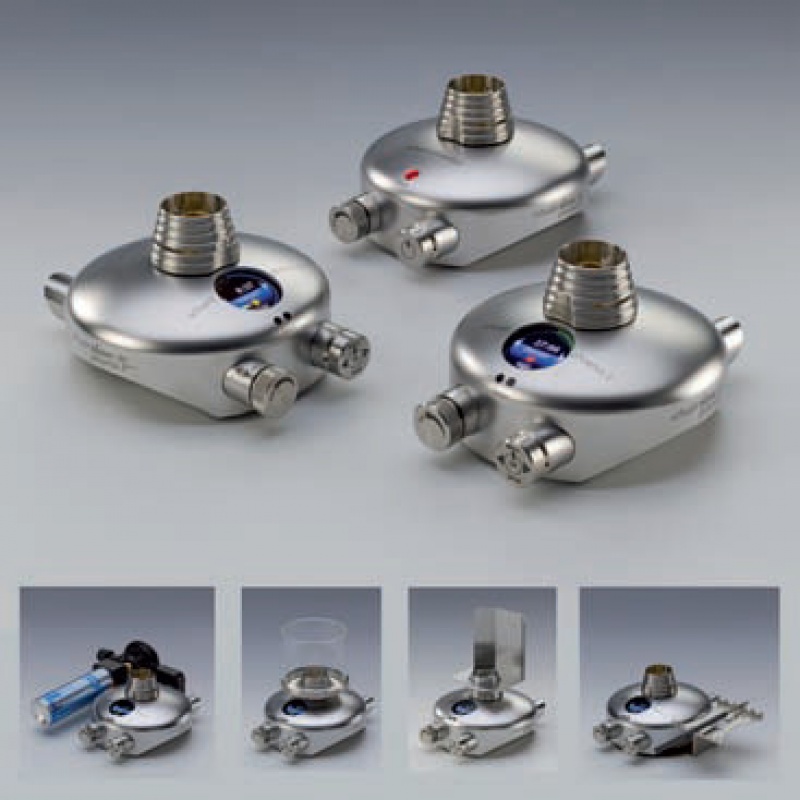

3 MODELS ARE AVAILABLE:
1) schuett phoenix II eco
On/off with foot switch or push button. No display. Ideal for use in microbiological safety chambers.
2) schuett phoenix II standard
Clear color display, selectable display language, on/off with sensor, foot switch or button.Displayed burning time.
3) schuett phoenix accu
Clear color display, selectable display language, on/off with sensor, foot switch or button, continuous display of clock and battery status. Built-in long-lasting batteries for up to 30 hours of operation, charging time of 3 hours.
Optional accessories:
- Foot switch, 3.5 m stainless steel cable
- Splash guard
- Stainless steel flame guard
- Stainless steel tool tray
- Hot-Tray, stainless steel with optimized height 160x140x160 mm
- Pressure reducing valve for connection of 5 or 11 kg propane cylinder (TÜV certified, for indoor/outdoor use)
- Burner head (standard)
- Burner head (long)
| Model | Display | Other |
|---|---|---|
| schuett phoenix II eco | no | no battery |
| schuett phoenix II standard | color | no battery |
| schuett phoenix II accu | color | accumulator |
