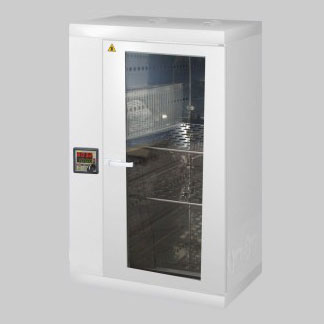

Wamed W Series safety drying chamber
Choose Models for offer request
Intended
- PID controller with autotuning
- Temperature setting in 0.1°C increments within a range of not less than +5°C above ambient temperature to +250°C
- Accuracy of temperature stabilization at a point of +/- 0.2°C
- Possibility of defining 1 program
- Maximum program duration up to 144 hours
- Possibility of continuous operation
- LED display 2 x 4 digits
- Password protected access to configuration parameters
- Autonomous, control-independent protection against exceeding available temperatures
- Stainless steel chamber
- Powder-coated gray steel casing
- Ventilation chimney
Characteristic
Available Models
Wamed safety drying chamber is an ideal device for drying, heating and other research work requiring elevated temperature.
The device is available in 7 capacities:17, 39, 75, 115, 143, 150, 220 liters.
It will be perfect for hospitals, laboratories,institutes, pharmacies and other experimental research units.
Electronic control ensures precise selection and distribution of temperature, which is displayed on a clear digital thermometer.
The drying chamber is equipped with SUP type forced air circulation, which helps maintain the desired temperature.
The regulation, stabilization of temperature and measurement of heating duration occurs through the use of reliable microprocessor-based PID controllers, thanks to which the heating process is interrupted once the desired temperature is reached.
The safety drying chamber has a housing made of powder-coated steel sheet. A working chamber with shelves is fixed inside. The chamber and shelves are made of stainless steel.
In the working chamber are fixed heaters and a fan, which forces air circulation and ensures proper temperature distribution.
It is possible to modify the manufacturer's factory settings, so the user can change some functions and messages according to his own preferences.
Additional options:
- powder-coated stainless steel housing in white or other agreed color
- different temperature setting range (300°C)
- key lock
- conduit for inserting additional sensors
- door fixed on the left side
- door with glass window
- double door, inner glass, outer sheet metal
- drainer in floor
- audible indication of end of operation/open door/open fireplace
- possibility to define 2 programs
- possibility to program a linear increase of temperature as a function of time while reaching the set temperature, so called RAMPA
- access to configuration parameters protected by password
- possibility of blocking changes of set values and START/STOP button
- possibility of using binary input START/STOP to control time function
- possibility of setting an alarm signal
Comparison of available models:
| Technial data | 18W | 30W | 65W | 100W | 140W | 150W | 200W |
| Volume | 17 l | 39 l | 75 l | 115 l | 144 l | 150 l | 220 l |
| Rated power | 900 W | 1000 W | 1600 W | 2100 W | 2800 W | 2200 W | 2600 W |
| Net mass | 25 kg | 36 kg | 46 kg | 58 kg | 80 kg | 80 kg | 90 kg |
| Total dimensions | 430x420x535 mm | 590x420x535 mm | 590x670x535 mm | 780x670x535 mm | 590x1150x535 mm | 950x670x535 mm | 780x1150x535 |
| Chamber dimensions | 200x270x400 mm | 360x270x400 mm | 360x480x400 mm | 550x480x400 mm | 360x960x400 mm | 720x480x400 mm | 550x960x400 |
| Air circulation | forced | forced | forced | forced | forced | forced | forced |
| Shelves | 1 sheet metal shelf | 1 wire shelf | 2 wire sheles | 2 wire shelves | 3 wire shelves | 2 wire shelves | 3 wire shelves |
| Model | Capacity | Mass | Dimensions |
|---|---|---|---|
| SUP-18W | 17 l | 25 kg | 430x420x535 mm |
| SUP-30W | 39 l | 36 kg | 590x420x535 mm |
| SUP-65W | 75 l | 46 kg | 590x670x535 mm |
| SUP-100W | 115 l | 58 kg | 780x670x535 mm |
| SUP-140W | 144 l | 80 kg | 590x1150x535 mm |
| SUP-150W | 150 l | 80 kg | 950x670x535 mm |
| SUP-200W | 200 l | 90 kg | 780x1150x535 mm |
