    Binder Classic Line FP Series drying chamber

    Choose Models for offer request

    Product Sheet

    Intended

    • Temperature range: ambient temperature plus 5°C to 300°C
    • APT.line™ preheating chamber technology
    • Adjustable fan speed
    • Adjustable air outlet lid
    • Controller with timestep programming and real-time programming
    • 2 chrome-plated wire shelves
    • Independent, adjustable Class 2 temperature protection with visual alarm
    • Interface for computer connection: RS 422

    • Characteristic

    • Available Models

    Binder Classic Line is first and foremost a high level of comfort, quality and reliability. Drying chambers are distinguished in the market by high energy efficiency, accurate measurement and smooth temperature distribution through the use of APT.line™ technology.

    These devices through a wide temperature range up to 300 °C have extensive applications. They will successfully prove themselves in scientific research, medicine or veterinary medicine.

    The interior features ergonomic organization for easy storage of samples at elevated temperatures. All components are mobile, having a tipping protection which guarantees safe operation.

    The BINDER FP series drying chamber reliably takes care of short drying times and particularly fast heating even when fully loaded.



    Comparison of available models:

    Technical data FP53 FP115 FP240 FP400 FP720
    Housing dimensions 635 x 620 x 575 mm 835 x 705 x 645 mm 1035 x 825 x 745 mm 1235 x 1025 x 765 mm 1235 x 1539 x 865 mm
    Internal dimensions (L x H x W) 400 x 400 x 340 mm 600 x 480 x 410 mm 800 x 600 x 510 mm 1000 x 800 x 510 mm 1000 x 1200 x 610 mm
    Volume 53 l 115 l 240 l 400 l 720 l
    Net mass 44 kg 62 kg 96 kg 145 kg 195 kg
    Spatial variation of temp at 150°C 2 ± K 1,8 ± K 2 ± K 2,5 ± K 2 ± K
    Temperature fluctuation at 150°C 0,3 ± K 0,3 ± K 0,3 ± K 0,3 ± K 0,3 ± K
    Heating up time at 150 °C 24 min 30 min 27 min 35 min 39 min
    Time to return to the set values after opening the door for 30s at 150°C 5 min 8 min 10 min 17 min 20 min





    Model Capacity Mass Dimensions
    FP 53 53 l 44 kg 635 x 620 x 575 mm

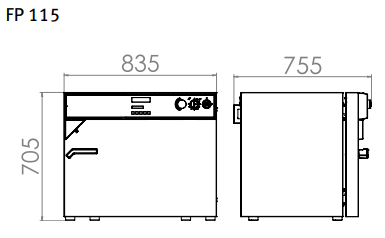

    FP 115 115 l 62 kg 835 x 705 x 645 mm
    FP 240 240 l 96 kg 1035 x 825 x 745 mm
    FP 400 400 l 145 kg 1235 x 1025 x 765 mm
    FP 720 720 l 195 kg 1235 x 1530 x 865 mm
