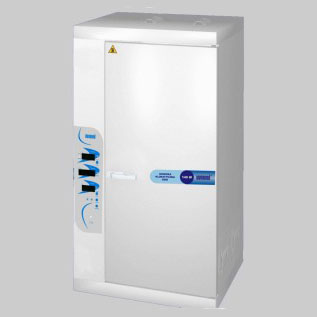

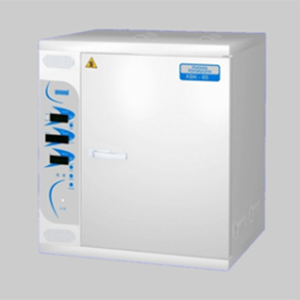

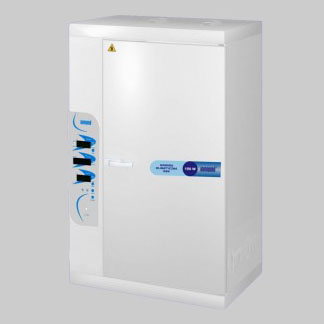

Wamed KBK version A climate chambers
Choose Models for offer request
Intended
- Forced air circulation
- Temperature setting in 0.1oC increments from -5°C to +70°C
- Microprocessor controller
- Possibility to store 9 time-temperature cycles
Characteristic
Available Models
The climate chambers are designed for research and experiments that require stable temperatures from -5°C to +70°C (version B from +5°C to +70°C).
The device allows a clear view of the parameters during operation of the device, the user is informed of the number and number of cycles in the time remaining to complete the cycle and the current temperature and humidity inside the chamber.
The chamber uses a dual protection system to prevent emergency temperature rise. The systems continuously monitor the compatibility of the set temperature with the temperature inside the chamber.
These devices are used in research and laboratory experiments that require temperatures below ambient and elevated temperatures and humidity from 10% to 95%.
Thanks to the use of forced air circulation, the time it takes for the temperature to reach the optimum value is much shorter and its even distribution is possible.
An additional advantage of the equipment is the option to connect it to a computer via RS 232, thanks to which the user can efficiently record the process, tabulate the results and design graphic visualizations of the process.
Monitoring the operation of the climate chamber is also possible using the Internet, and receiving information about failures via SMS.
Features:
- Accuracy of temperature setting and reading 0.1oC
- Humidity setting from 10 to 95%
- Accuracy of humidity reading +/- 0.1%
- Setting the duration of the desired temperature up to 1000 hours or continuous operation
- Possibility of programming a delayed activation of the device
- Acoustic signaling of program termination
- Possibility of viewing the set and current parameters during operation of the device
- Autonomous, independent from the control, protection against exceeding the operating range temperature
- Double system-operated system protecting the device from uncontrolled increase of the set temperature
- Full information on program execution stages during chamber operation
- Control of power failure and return to operation
- Chamber made of stainless steel
- Powder-coated stainless steel housing in white color
- Internal cooling
Additional options:
- cooperation with a computer via the Internet, SMS messages
- USB socket
- housing painted in another agreed color
- setting of a different temperature range
- key lock
- culvert for inserting additional sensors
- shelves made of perforated or solid metal sheets
- ventilation chimneys
- cooling with tap water
- door fixed on the left side
- door with glass window
- double door, inner glass, outer sheet metal
- sound signaling of open fireplaces/doors
Comparison of available models:
| Technical data | 30W | 65W | 100W | 140W | 150W | 200W |
| Volume | 30 l | 71 l | 110 l | 134 l | 143 l | 204 l |
| rated power | 400 W | 600 W | 1000 W | 1600 W | 1600 W | 1600 W |
| Net weight | 40 kg | 70 kg | 70 kg | 90 kg | 90 kg | 90 kg |
| Housing dimensions | 630x900x690 mm | 590x1150x690 mm | 780x1150x650 mm | 590x1630x690 mm | 950x1150x650 mm | 590x1630x690 mm |
| Chamber dimensions | 360x300x360 mm | 360x550x360 mm | 550x550x360 mm | 360x1030x360 mm | 720x550x360 mm | 550x1030x360 mm |
| Air circulation | forced | forced | forced | forced | forced | forced |
| Shelves | 1 wire shelf | 2 wire shelves | 2 wire shelves | 3 wire shelves | 2 wire shelves | 3 wire shelves |
| Model | Capacity | Power | Mass | Dimensions |
|---|---|---|---|---|
| KBK-30W | 30 l | 400 W | 40 kg | 630x900x690 mm |
| KBK-65W | 71 l | 600 W | 70 kg | 590x1150x690 mm |
| KBK-100W | 110 l | 1000 W | 70 kg | 780x1150x650 mm |
| KBK-140W | 134 l | 1600 W | 90 kg | 590x1630x690 mm |
| KBK-150W | 143 l | 1600 W | 90 kg | 950x1150x650 mm |
| KBK-200W | 204 l | 1600 W | 90 kg | 590x1630x690 mm |
