RM roller shakers
Choose Models for offer request
Intended
- Roller shaker
- Adjustable speed
- Usable length of rollers 330 mm
Characteristic
Available Models
Five or ten synchronized rotating PVC rollers provide even and gentle rocking of mixing tubes. Sufficient space allows multiple test tubes to be placed horizontally along the surface of the oscillating rollers for simultaneous gentle and uniform mixing.
This type of shaker is specially designed for uniform mixing of medical laboratory blood tests, hematology assays and other cell suspension samples .It also prevents sedimentation in samples such as dyes, paints, oils and cosmetics, etc.
The RM 5 and RM 10 have a 24 VDC drive, power supply included with connectors for EU, US, UK and AU. On these two models, each roller can be removed individually without tools. These roller mixers carry everything in the lab, from test tubes to 5L bottles.
| Technical specification | RM 5 | RM 10 | RM 5K | RM 5F |
| Speed [1/min] | 4 - 30 10 - 70 |
4 - 30 10 - 70 |
4 - 30 | 40 |
| Roll lwngth [mm] | 330 | 330 | 216 | 334 |
| Number of rolls | 5 | 10 | 5 | 5 |
| Removable rollers | yes | yes | no | no |
| Maximum premissible load [kg] | 5 | 5 | 5 | 5 |
| Weight [kg] | 6,5 | 3,7 | 3 | 3,7 |
| Dimensions [WxDxH mm] | 360 x 480 x 113 | 180 x 480 x 113 | 180 x 340 x 113 | 180 x 480 x 113 |
| Model | Other |
|---|---|

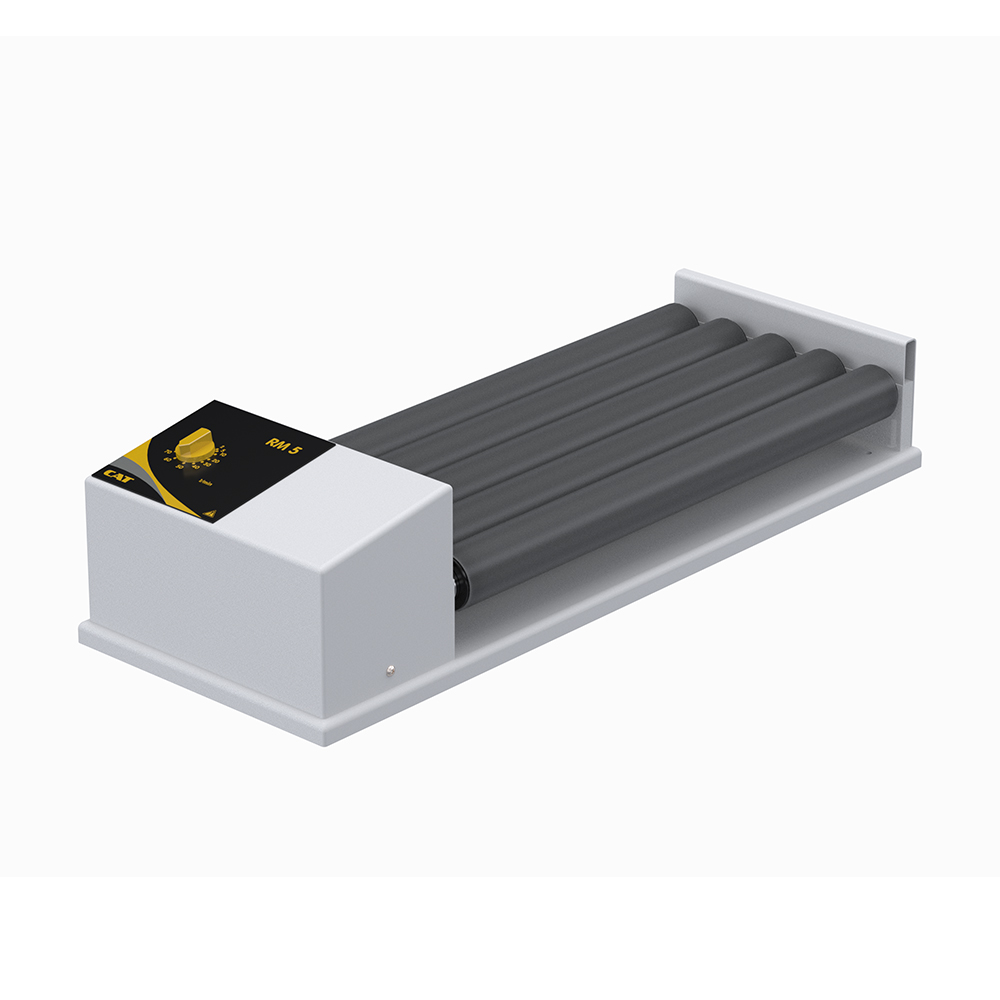

| RM 5 nr kat.: 60207-0070 | 5 rolls |

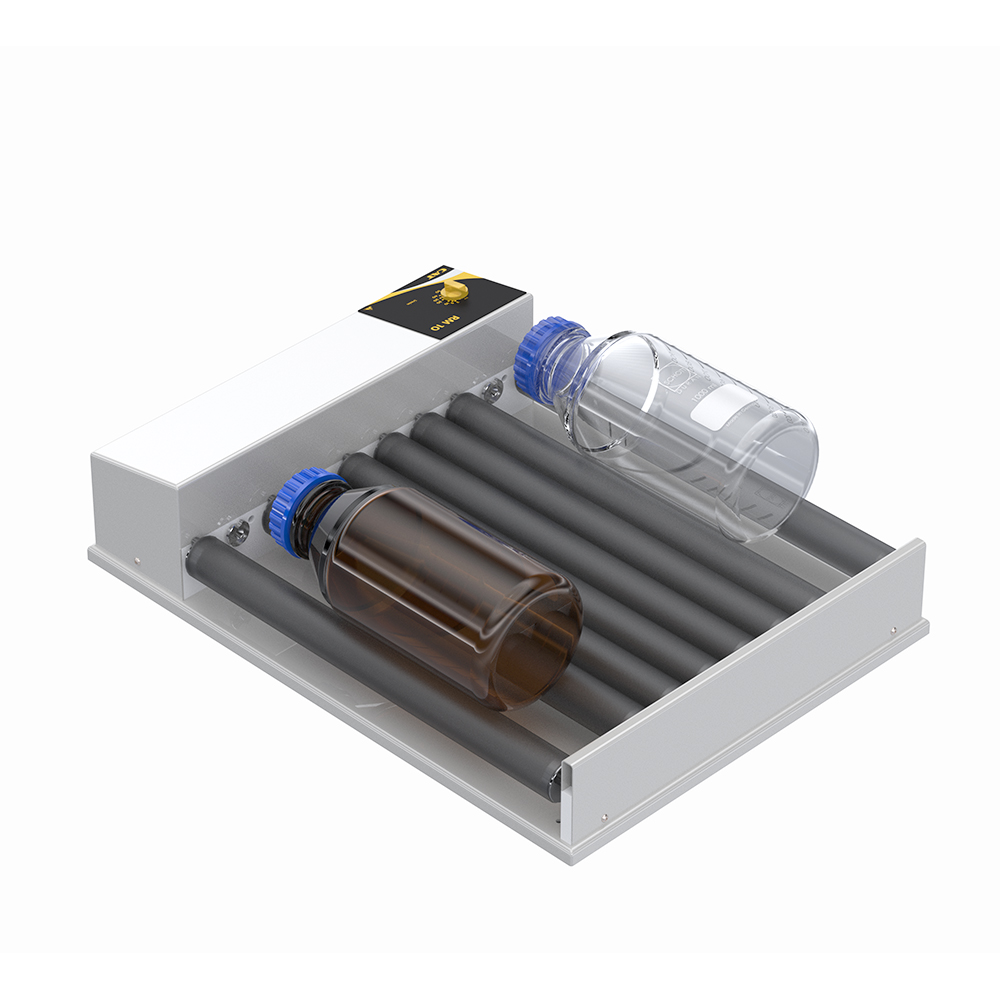

| RM 10 nr kat.: 60207-0030 | 10 rolls |

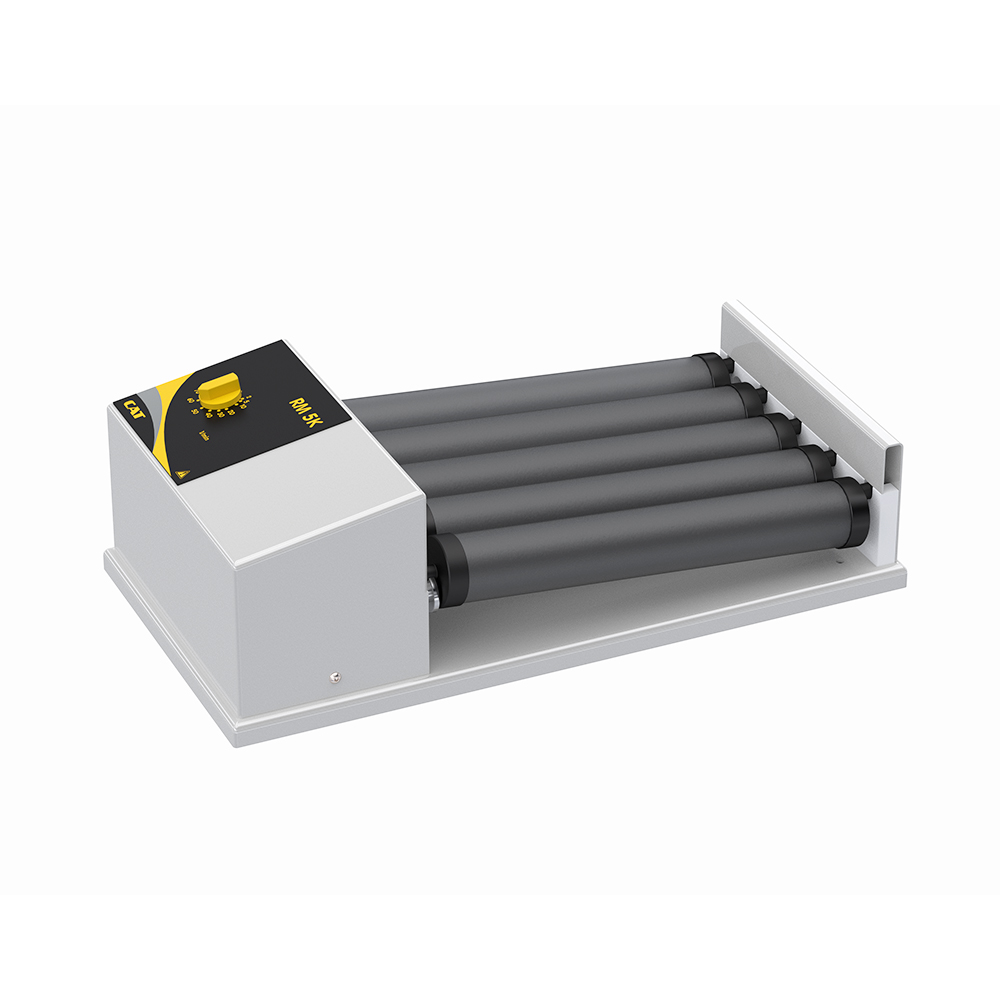

| RM 5K nr kat.: 60207-0020 | 5 rolls |

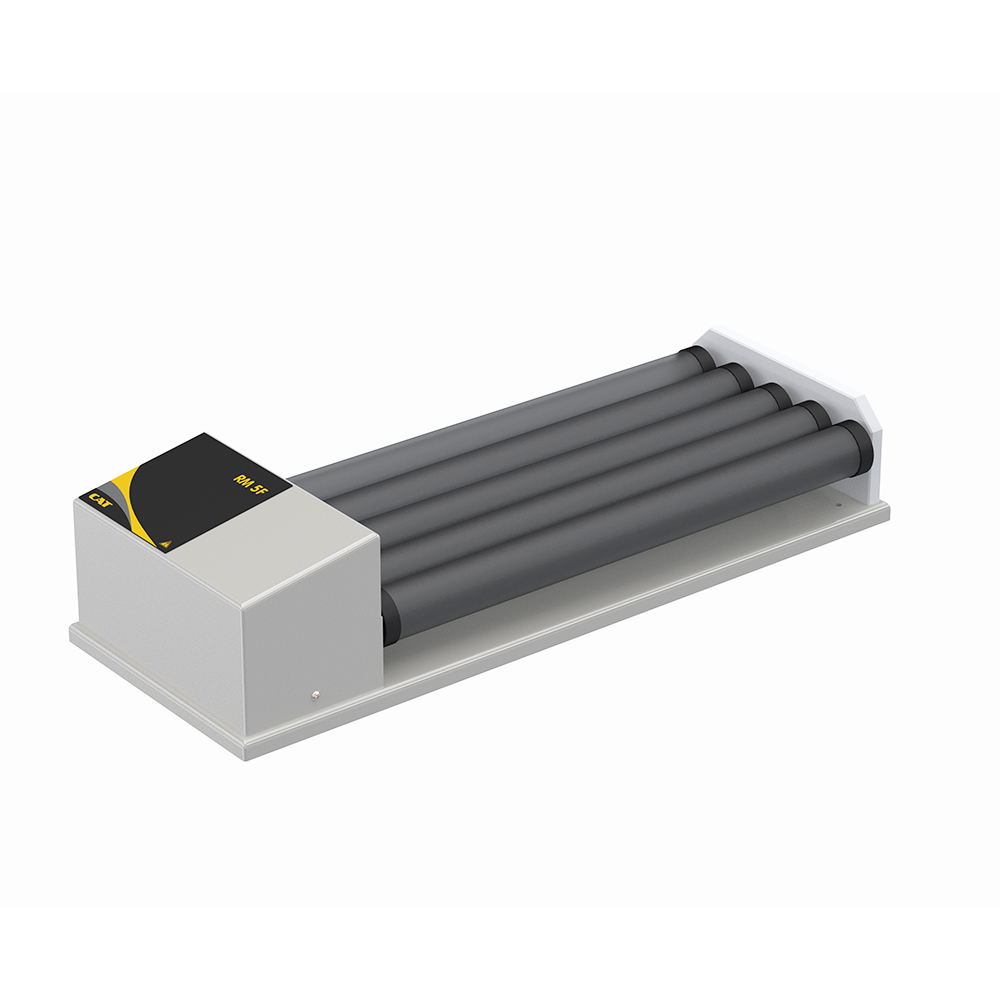

| RM 5F nr kat.: 60207-0020 | 5 rolls |
