Manual colony counter Scan 50 and 50 PRO

Choose Models for offer request

  • manual colony counter
  • contrast colony illumination
  • data export via USB, LIMS, in CSV or text format
  • counting on petri dishes
  • Scan 50 and 50 Pro series replaced the Scan 100 series
Scan 50 is a manual colony counter that is suitable for all types of media:
  • Petri dishes (diameter frim 55 to 90 mm)
  • PerfifilmTM
  • MC-Media PadsTM
  • easyPlateTM
  • filtration membranes
  • Counting is done by a simple touch pressure and is then recorded - you can count from 0 to 1999 CFU

Contrasting colony lighting - Dark Field 2

This technology is an indirect lighting system with adjustable intensity. Light reflectors diffuse the light at all points without reflections or shadows. Thanks to that, all colonies stand out on the surface, in the mass and around the edge of the dish. Flashes of light are eliminated and operator's eyes are protected.

Touch surface - with adjustable sensitivity

Scan 50 is intuitive - count colonies on your dish, the touch surface is doubled by sound or light signal.

Ergonomic
  • Audio Comfort - 9 different sounds and headphones jack
  • Light signal - light signal for each counted colony
  • Optimal working posture - inclined reading surface with magnifying lens (optional), hand rest, prevents musculo-skeletal disorders
  • Ambidextrous - duplictaed count buttons on both sides

Easy to clean and disinfect
To keep the workstation clean, the glass and the smooth handrest are removable.

Applications



Specification:
  • material of construction - stainless steel
  • LIMS/SIL connection
  • USB connection
  • counting on poured surfaces, spiral and round petri dishes - manually
  • counting on chromogenic plates - manually
  • counting on PetrifilmTM, Compact DryTM, MC-Media PadsTM, easyPlateTM, filter membranes - manual
  • counting on 100% Petri dishes
  • LED lighting no flashes
  • manual counting - 0 - 1999 CFUs
  • manual control of addition or subtraction of colonies
  • counting light signal
  • adjustable counting sound signals - 9 different sounds / 5 volume levels
  • counting zone - touch surface with adjustable sensitivity
  • light technology - Dark Field 2, LED lighting with 5 levels of intensity
  • Petri dish size - diameter from 55 to 90 mm
  • power supply - 100-240 V, 50-60 Hz
  • power - 20 W
  • fuse - T3.15A L 250V 5x20 mm
  • IP20 protection

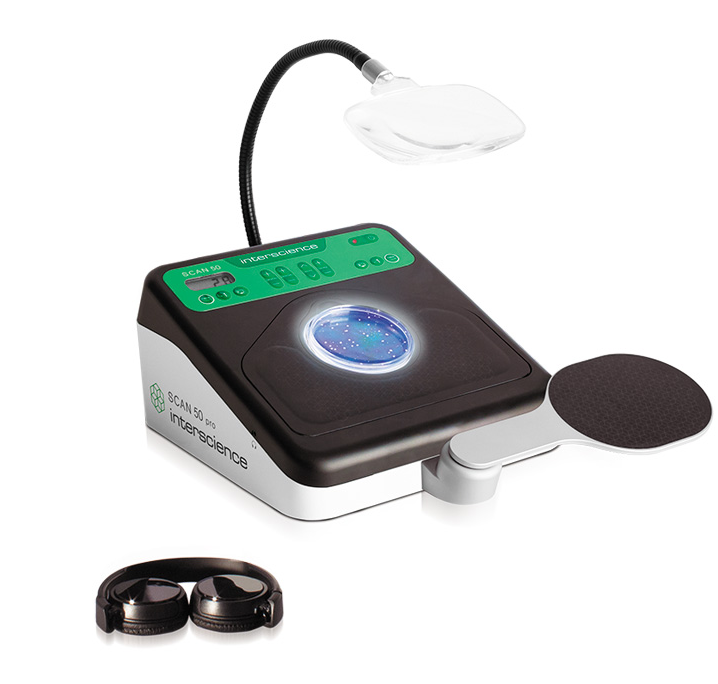

Scan 50 pro is a manual colony counter with HandPad and multiple ergonomic supports
  • Petri dishes (diameter from 55 to 90 mm)
  • PetrifilmTM
  • MC-Media PadsTM
  • easyPlateTM
  • filtration membranes
  • counting is done by a simple touch pressure - you can count from 0 to 1999 CFU


Contrasting colony lighting - Dark Field 2

This technology is an indirect lighting system with adjustale intensity, the light is diffuded at all points without reflections or shadows. Flashes of light are eliminated and the operator's eyes are protected.

Touch surface with adjustable sensitivity

Counting with Scan 50 pri is intuitive - count the colonies on your dish, the touch surface doubled by a sound or light signal.

Ergonomic:
  • Audio Comfort - 9 different sounds and headphones jack
  • Light signal - light signal for each counted colony
  • Optimal working posture - inclined reading surface with magnifying lens (optional), hand rest nad HandPad, prevents musculo-skeletal disorders
  • Ambidextrous - duplicated sount buttons on both sided, HandPad, 180 degree arm-rest that turns on the machine

HandPad

Scan 50 pro is equipped with HandPad, an ambidextrous armrest. It can be slid to either side with a single movement and turns the machine on. The colony counter is also suitable for both right and left-handed users.

Easy to clean and disinfect

To keep the workstation clean, the glass and the smooth handrest are removable.

Applications






Specification:

  • material of construction - stainless steel
  • LIMS/SIL connection
  • USB connection
  • counting on poured surfaces, spiral and round petri dishes - manually
  • counting on chromogenic plates - manually
  • counting on PetrifilmTM, Compact DryTM, MC-Media PadsTM, easyPlateTM, filter membranes - manual
  • counting on 100% Petri dishes
  • LED lighting no flashes
  • manual counting - 0 - 1999 CFU
  • headphones included
  • manual control of addition or subtraction of colonies
  • counting light signal
  • adjustable counting beeps - 9 different beeps / 5 volume levels
  • counting zone - touch surface with adjustable sensitivity
  • light technology - Dark Field 2, LED lighting with 5 levels of intensity
  • Petri dish size - diameter from 55 to 90 mm
  • power supply - 100-240 V, 50-60 Hz
  • power - 20 W
  • fuse - T3.15A L 250V 5x20 mm
  • IP20 protection
  • dimensions - 27.3 x 35.2 x 15.1 cm (W x D x H)
  • weight - 4.45 kg




Model Description
Scan 50 Manual bacterial colony counter with Dark Field 2 lighting technology
Scan 50 PRO hand-held bacterial colony counter with Dark Field 2 lighting technology and headphones included
