Dual function UV lamps: direct action as well as indirect action LUMEELAMP STERILIZER DUAL* series

LumeeLamp Sterilizer Dual devices are modern universal devices for comprehensive sterilization and disinfection of objects and surfaces, as well as air by means of UV-C radiation. The devices do not produce ozone.

LumeeLamp devices operate in two modes:

• device made of steel covered with a special protective coating resistant to UV radiation-ensures safety of use

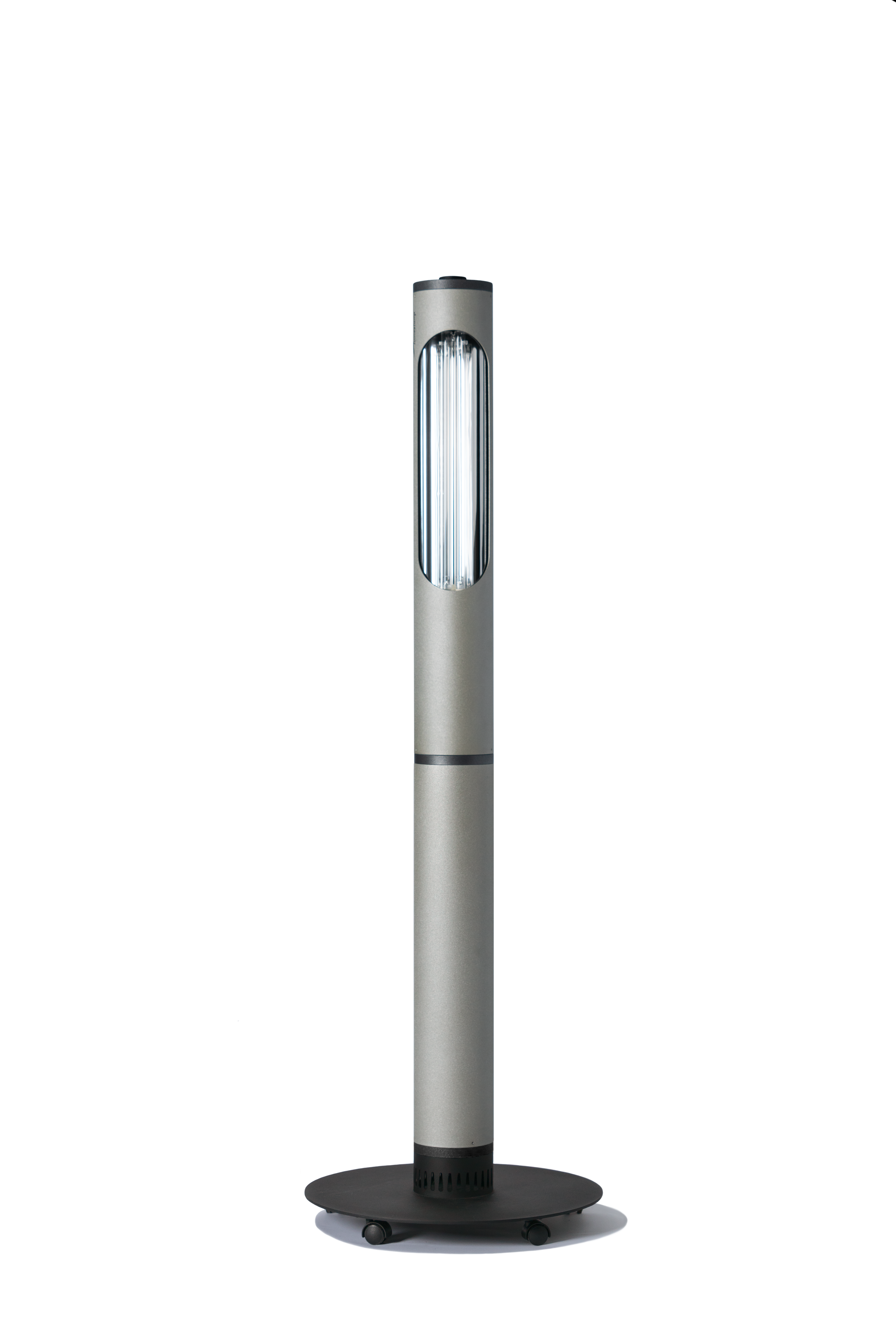

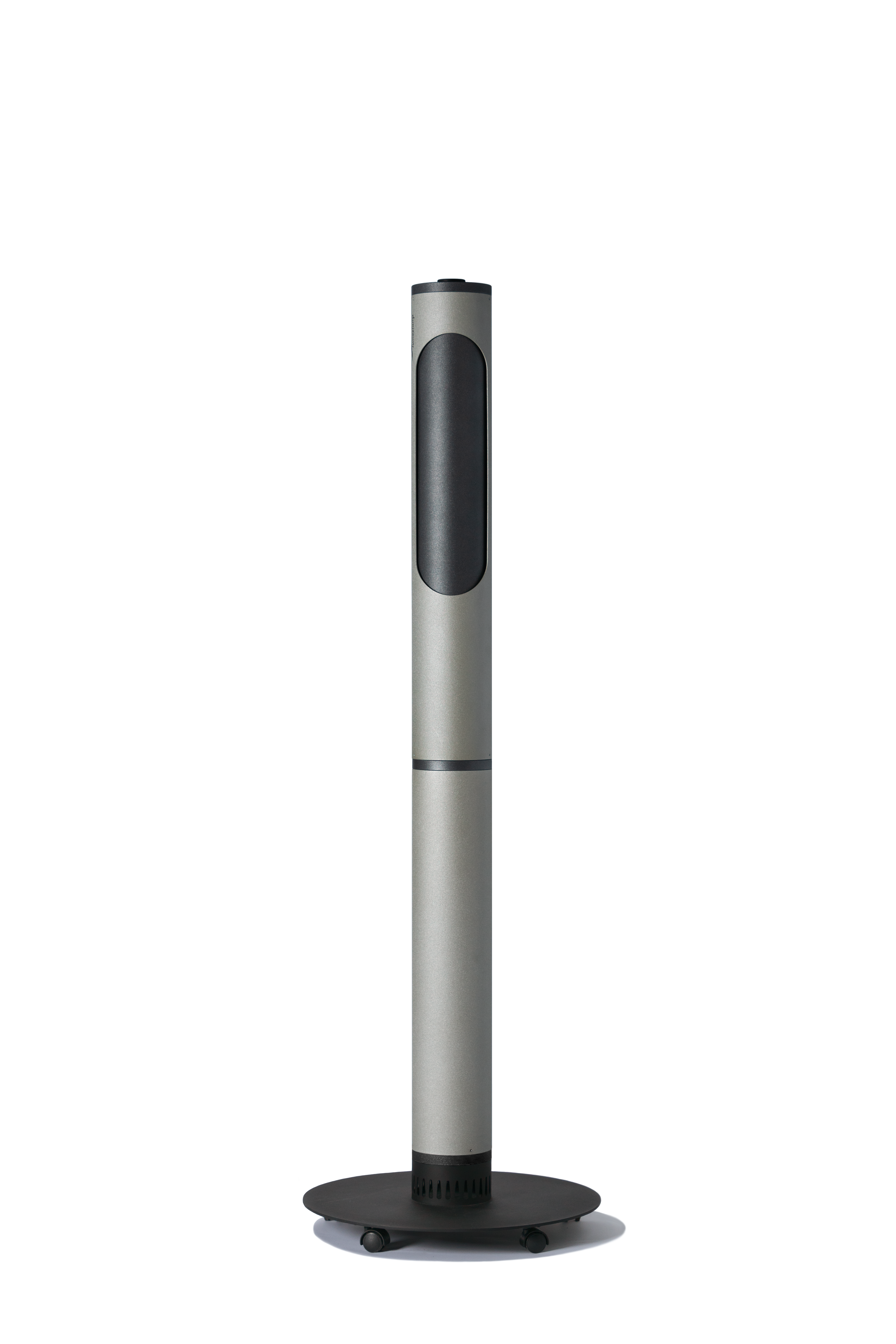

• standing version

Technical specifications for the STERILIZER DUAL 36 F model

POWER SUPPLY VOLTAGE: 230 V/50 Hz
POWER CONSUMPTION: 48 VA
DISINFECTED AREA: 15-20 m2
DISINFECTED VOLUME: 35-50 m3
RADIATION SOURCE: UVC PL-L 36W/4P, 2G11
UV-C RADIATION: Wavelength - 254 nm
UV-C RADIATION DENSITY AT A DISTANCE OF 1 M : 1.4 W/m2
lifetime of the radiator : 8000 h
VENTILATOR EFFICIENCY : 106 M3/h.
USABLE EFFICIENCY OF THE UNIT:
standard/quiet mode - 39 m3/h
turbo mode - 68 m3/h
NOISE LEVEL:
standard/quiet mode - 33 dB
turbo mode - 46 dB
FILTER: anti-dust with activated carbon
SPORTS SECURITY CLASS: class I
HOUSING TYPE : IP 20
LENGTH OF POWER CABLE : 2 m
SWITCHING: on/off switch
UNIT DIMENSIONS: 790 x 120 x 120 mm,
diameter of the base - 250 mm
MASS: 7.5 kg
PATENT NO.: P.434995

Technical data for the STERILIZER DUAL 95 F:

POWER VOLTAGE: 230 V/50 Hz
POWER CONSUMPTION: 105 VA
DISINFECTED AREA: 30-40 m2
DISINFECTED VOLUME: 50-85 m3
RADIATION SOURCE: UVC PL-L 95W/4P, HO 1CT 2G11 radiant tube.
UV-C RADIATION: wavelength - 254 nm
UV-C RADIATION DENSITY AT A DISTANCE OF 1 M : 3.8 W/m2.
lifetime of the radiator : 8000 h
VENTILATOR EFFICIENCY : 106 M3/h.
USABLE EFFICIENCY OF THE UNIT:
standard/quiet mode - 39 m3/h
turbo mode - 68 m3/h
NOISE LEVEL:
standard/quiet mode - 33 dB
turbo mode - 46 dB
FILTER: anti-dust with activated carbon
SPORTS SECURITY CLASS: class I
HOUSING TYPE : IP 20
LENGTH OF POWER CABLE : 2 m
SWITCHING: on/off switch
UNIT DIMENSIONS: 1050 x 120 x 120 mm,
diameter of the base - 250 mm
MASS: 10,2 kg
PATENT NO.: P.434995


Technical data for LUMEELAMP STERILIZER DUAL NX; NX100:
power supply voltage: 230V/50Hz
power consumption: 48W // 105W
disinfected cubic capacity: 35-65 m3 // 60-120 m3
disinfected area: 15-25 m2 // 30-50 m2
electronic WiFi controller
filter: anti-dust with activated carbon
weight: 7.5 kg // 10.9 kg

The Lumeelamp App is available for free download on AppleStore and GooglePlay. Main features:

remote switching on and off of the device;
automatic setting of the delay for switching on the device and its operation time (Timer);
control of the total operating time of the illuminator and information about the need for replacement with a new one;
The possibility of simultaneous control of multiple Lumeelamp NX devices.


By replacing the UV-C radiator with a classic PL-L energy-saving fluorescent lamp, we can turn the disinfecting device into a designer lighting lamp.

Note, LumeeLamp - Sterilizer Dual 36 F uses UV-C radiation and is 100% safe when using the device properly.

The use of UV-C to combat the coronavirus pandemic is recommended by the World Health Organization (WHO) and Poland's Chief Sanitary Inspectorate

Sterilizes air: Research by Warsaw Medical University has shown UV-C disinfection to be 99.99% effective, kills viruses, bacteria, molds, and other microorganisms.

Sterilizes surfaces: Research by experts at the SSLEEC Center of the University of California, Santa Barbara has proven that it kills viruses such as SARS-CoV-2 - test results are 99.99% destruction of coronavirus, kills bacteria, mold, and other microorganisms.

Intended use: Doctors' offices, treatment rooms, beauty salons, hairdressing salons, restaurants, cafes, hotels, offices, waiting rooms, kindergartens, cafeterias , pharmacies, bakeries, corridors, conference and training rooms, private homes, any place intended for concentrations of people.

NOTE!
UV-C radiation is harmful to the skin and eyes, so use LumeeLamp - Sterilizer Dual with extreme caution, observing the following rules:
1. OPEN MODE - disinfect objects and surfaces only when people and animals are not present.
2. CLOSED MODE - when disinfecting/sterilizing the air, check the accuracy of closing the radiant chamber then the filter system will automatically turn on and the device is safe and can be used when people and animals are present.

Technical specification	F36	NX	RX	F95	NX 100	RX 100
Application	No	Yes		No	Yes
Power supply	230 V/50 Hz
Power consumption	48 W			105 W
Disinfected surface	15-20 m2	15-25 m2	20-30 m2	30-40 m2	30-50 m2	35-60 m2
Disinfected volume	35-50 m3	35-65 m3	50-75 m3	50-85 m3	60-120 m3	80-150 m3
Radiation source	UVC PL-L 36W/4P radiant heater, 2G11			UVC Radiant PL-L 95W/aP, HO 1CT 2G11
Catalytic coating	No		Titanium oxide TiO2 nanoparticles	No		Titanium oxide TiO2 nanoparticles
Radiation UV-C	Wavelength - 254 nm
The intensity of UV-C radiation at a distance of 1 m	1,4 W/m2			3,8 W/m2
Durability of the radiator	8000 h
Fan efficiency	106 m3/h				2 x 106 m3/h
Utility capacity of the device	standard mode/ Quiet – 39 m3/h, turbo – 68 m3/h	standard mode/Quiet – 39 m3/h, turbo – 60 m3/h		standard mode/Quiet – 39 m3/h, turbo – 68 m3/h	standard mode/Quiet – 45 m3/h turbo – 75 m3/h
Level of noise	standard mode/Quiet – 33 dB, tryb turbo - 46 dB	standard mode/Quiet – 32 dB, turbo – 43 dB		standard mode/Quiet – 33 dB, turbo - 46 dB	standards mode/Quiet – 36 dB, turbo - 49 dB
Activated carbon dust filter PPOR protection class	class I
Housing type	IP 20
Power cord length	2 m		3 m	2 m		3 m
Turn on	switch		electronic controller/application	switch		electronic controller/application
Dimensions	790x120x120mm, base diameter – 250 mm			1050 x 120 x 120 mm, base diameter – 250mm	1075 x 120 x 120 mm, base diameter – 350 mm
Weight	7,5 kg			10,2 kg	10,9 kg
Patent no	P.434995
