High temperature furnaces MTSiC
Choose Models for offer request
Intended
- Temperature max 1400-1550°C
- Homogeneous heat distribution
- Programming with easy-to-understand menus on a 4-line LCD display
- SiC heating elements
- Volume from 3 to 60 l
- Design for minimizing aging of SiC heating elements with phase-angle controlled voltage regulation
- Accurate temperature measurement and control with S-type thermocouple
- Control accuracy of ± 1°C
- Internal chamber made of lightweight insulating bricks and ceramic plate
Characteristic
Available Models
MagmaTherm high-temperature chamber furnaces with SiC heating elements are the ideal choice for research or laboratory purposes requiring high temperatures between 1400°C and 1550°C.
These furnaces can be used in all types of processes such as heat treatment, sintering, melting, oxidation in dental, mining, ceramic, experimental, university and also quality control areas.

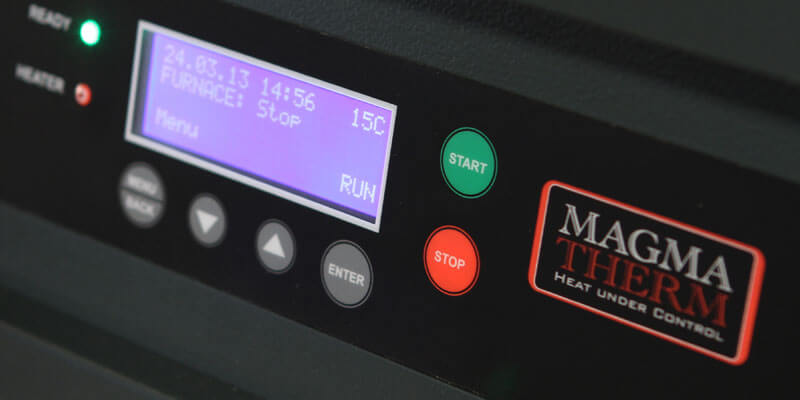

The device is equipped with a clear menu on a 4-line LCD display to facilitate efficient operation.
The proven SiC heating element system provides precise phase angle controlled voltage regulation.
The technologies used enable rapid heating of the high-temperature furnace at a cold start.
With a functional software system, the furnace is equipped with a power consumption controller to make use completely safe.
Optional features such as a protective gas connection, a door sensor, a second thermocouple and also a side door lift option are available.
Comparison of available models:
| Technical data | Volume | Internal dimensions | External dimensions | Net weight | Power | Heating element | Thermocouple | Internal insulation material | Housing material | Protection of the heating element |
| MTSiC-1400-3 | 3 l | 140x130x165 mm | 494x606x634 mm | 48 kg | 3.750 W | SiC | Type S | ceramic plate | sheet | NO |
| MTSiC-1400-6 | 6 l | 180x160x260 mm | 545x636x684 mm | 56 kg | 7.0 W | SiC | Type S | ceramic plate | sheet | NO |
| MTSiC-1400-9 | 9 l | 200x180x300 mm | 570x646x634 mm | 66 kg | 8.2 W | SiC | Type S | ceramic plate | sheet | NO |
| MTSiC-1400-16 | 16 l | 250x200x320 mm | 620x676x789 mm | 78 kg | 6.8 W | SiC | Type S | ceramic plate | sheet | NO |
| MTSiC-1400-30 | 30 l | 300x250x395 mm | 670x726x864 mm | 87 kg | 10.5 W | SiC | Type S | ceramic plate | sheet | NO |
| MTSiC-1400-60 | 60 l | 400x300x495 mm | 770x776x964 mm | 96 kg | 13.3 W | SiC | Type S | ceramic plate | sheet | NO |
| MTSiC-1500-3 | 3 l | 140x130x165 mm | 494x606x634 mm | 48 kg | 5.1 W | SiC | Type S | ceramic plate | sheet | NO |
| MTSiC-1500-6 | 6 l | 180x160x260 mm | 545x636x684 mm | 56 kg | 6.1 W | SiC | Type S | ceramic plate | sheet | NO |
| MTSiC-1500-9 | 9 l | 200x180x300 mm | 570x646x634 mm | 66 kg | 7.0 W | SiC | Type S | ceramic plate | sheet | NO |
| MTSiC-1500-16 | 16 l | 250x200x320 mm | 620x676x789 mm | 82 kg | 7.2 W | SiC | Type S | ceramic plate | sheet | NO |
| MTSiC-1500-30 | 30 l | 300x250x395 mm | 670x726x864 mm | 91 kg | 11.2 W | SiC | Type S | ceramic plate | sheet | NO |
| MTSiC-1500-60 | 60 l | 400x300x495 mm | 770x776x964 mm | 100 kg | 14.2 W | SiC | Type S | ceramic plate | sheet | NO |
| MTSiC-1550-3 | 3 l | 140x130x165 mm | 494x606x634 mm | 48 kg | 4.8 W | SiC | Type S | ceramic plate | sheet | NO |
| MTSiC-1550-6 | 6 l | 180x160x260 mm | 545x636x684 mm | 56 kg | 7 W | SiC | Type S | ceramic plate | sheet | NO |
| MTSiC-1550-9 | 9 l | 200x180x300 mm | 570x646x634 mm | 66 kg | 8.194 W | SiC | Type S | ceramic plate | sheet | NO |
| MTSiC-1550-16 | 16 l | 250x200x320 mm | 620x676x789 mm | 85 kg | 8.5 W | SiC | Type S | ceramic plate | sheet | NO |
| MTSiC-1550-30 | 30 l | 300x250x395 mm | 670x726x864 mm | 94 kg | 10.5 W | SiC | Type S | ceramic plate | sheet | NO |
| MTSiC-1550-60 | 60 l | 400x300x495 mm | 770x776x964 mm | 102 kg | 17.8 W | SiC | Type S | ceramic plate | sheet | NO |
| Model | Capacity | Dimensions |
|---|---|---|
| MTSiC-1400-3 | 3 l | 494x606x634 mm |
| MTSiC-1400-6 | 6 l | 545x636x684 mm |
| MTSiC-1400-9 | 9 l | 570x646x634 mm |
| MTSiC-1400-16 | 16 l | 620x676x789 mm |
| MTSiC-1400-30 | 30 l | 670x726x864 mm |
| MTSiC-1400-60 | 60 l | 770x776x964 mm |
| MTSiC-1500-3 | 3 l | 494x606x634 mm |
| MTSiC-1500-6 | 6 l | 545x636x684 mm |
| MTSiC-1500-9 | 9 l | 570x646x634 mm |
| MTSiC-1500-16 | 16 l | 620x676x789 mm |
| MTSiC-1500-30 | 30 l | 670x726x864 mm |
| MTSiC-1500-60 | 60 l | 770x776x964 mm |
| MTSiC-1550-3 | 3 l | 494x606x634 mm |
| MTSiC-1550-6 | 6 l | 545x636x684 mm |
| MTSiC-1550-9 | 9 l | 570x646x634 mm |
| MTSiC-1550-16 | 16 l | 620x676x789 mm |
| MTSiC-1550-30 | 30 l | 670x726x864 mm |
| MTSiC-1550-60 | 60 l | 770x776x964 mm |
