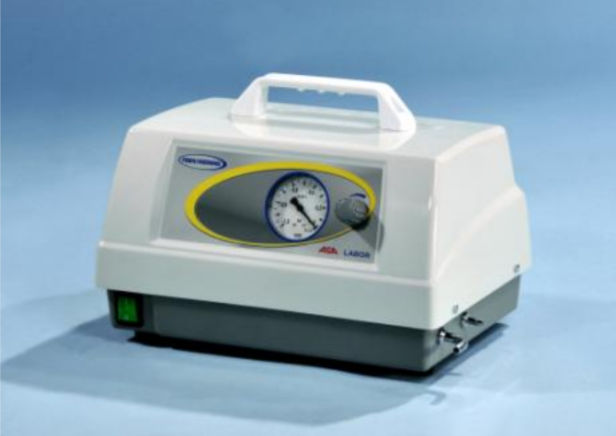

Vacuum pump PL2
Choose Models for offer request
Intended
- Two-head diaphragm pump
- Vacuum controllable
- Class 1 insulation
- For laboratory work requiring vacuum
Characteristic
Available Models
PL2 pumps are used for work within the laboratory for processes requiring vacuum. The pumps are used as a vacuum source for vacuum evaporators and drying. They can also be used to support filtration and seepage processes. The device consists of a two-head diaphragm pump driven by a single-phase electric motor protected by a fuse. It has a built-in vaccuometer and the ability to adjust the vacuum - depending on the version to 0.85 bar (PL 2/1 and PL 2/4 pumps) or to 0.95 bar (PL 2/2 and PL2/3). The pump and motor are a single component. The pump is adapted to pump air and other gases, provided that they do not have a destructive effect on the materials used in its construction.
Technical data | PL2 |
Power supply | 230 V ±10% / 50 Hz |
Power consumption | < 100 VA |
Weight | 6,5 kg |
Noise level: | |
PL 2 / 1 | 54,8 dB |
PL 2 / 2 | 53 dB |
PL 2 / 3 | 42 dB |
PL 2/ 4 | 45,5 dB |
Dimensions | 330 x 240 x 220 mm |
Insulation class | 1. |
Models | Type of pump | Output [l/min] | Max vacuum [MPa] |
Absolute value [mbar] |
Basic 36 | PL 2/1 | 36 | -0,085 | 150 |
Basic 20 | PL 2/2 | 20 | -0,095 | 50 |
Silent 19 | PL 2/3 (quiet) | 9 | -0,095 | 50 |
Silent 10 | PL 2/4 (quiet) | 19 | -0,085 | 150 |
Model | Other |
---|---|
Basic 36 | Output 36 l / min |
Basic 20 | Output 20 l / min |
Silent 19 | Output 9 l / min |
Silent 10 | Output 19 l / min |
