CAT dosing pumps
Choose Models for offer request
Intended
- No glass piston and no valves,
- Minimized dead volume
- All wetted parts are made of ceramic (99.7% Al2O3) and PVDF
- Integrated calibration function
- Possibility to connect to a computer
Characteristic
Available Models

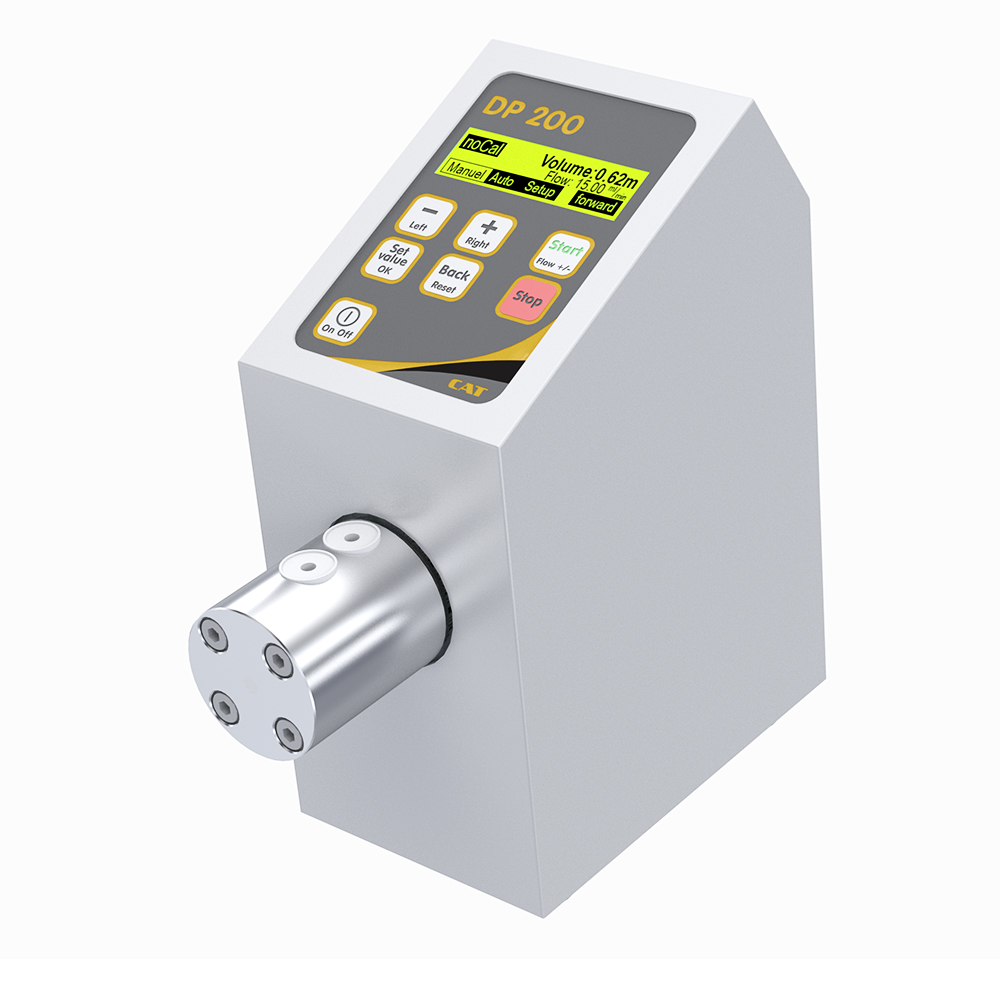

Valveless, precision micro dosing pumps of the DP 200 series with digital flow rate control. They are covered with an acid-resistant housing with a keypad for easy setting of all dispensing parameters (e.g. volume, flow rate or flow direction).
The pumps are manufactured with different heads:
The pumps are manufactured with different heads:
Type of head |
Inlet/outlet threads |
Flush port threads |
20V und 20T |
UNF-1/4“-28 |
- |
20VCS und 20TCS |
UNF-1/4“-28 |
UNF-1/4“-28 |
200V und 200T |
UNF-1/4“-28 |
- |
200VCS und 200TCS |
UNF-1/4“-28 |
UNF-1/4“-28 |
300VCS und 300TCS |
M8 |
UNF-1/4“-28 |
Model | Description | Other |
---|---|---|
DP200/20 cat no.: 61763-0000 | 1 µl - 50 ml | 0.02 - 4 ml/min | head 20VCS |
DP200/20 cat no.: 61761-0000 | 1 µl - 50 ml | 0.02 - 4 ml/min | head 20TCS |
DP200/20 cat no.: 61762-0000 | 1 µl - 50 ml | 0.02 - 4 ml/min | head 20V |
DP200/20 cat no.: 61760-0000 | 1 µl - 50 ml | 0.02 - 4 ml/min | head 20T |
DP200/200 cat no.: 61767-0000 | 10 µl - 500 ml | 0.2 - 40 ml/min | head 200VCS |
DP200/200 cat no.: 61765-0000 | 10 µl - 500 ml | 0.2 - 40 ml/min | head 200TCS |
DP200/200 cat no.: 61766-0000 | 10 µl - 500 ml | 0.2 - 40 ml/min | head 200V |
DP200/200 cat no.: 61764-0000 | 10 µl - 500 ml | 0.2 - 40 ml/min | head 200T |
DP200/230 cat no.: 61769-0000 | 20 µl - 1000 ml | 0.4 - 60 ml/min | head 200VCS |
DP200/300 cat no.: 61768-0000 | 20 µl - 1000 ml | 0.4 - 60 ml/min | head 200TCS |
