Bioscience Exige laboratory freezer

Choose Models for offer request

Intended

  • shape-2682
  • shape-2686
  • shape-2682
  • shape-2686
  • easy-to-use - intuitive menu with clear designs,
  • complete documentation - temperature history, temperature compliance report,
  • temperature control - live temperature monitoring for extra control,
  • compliance with:
    • DIN 13277:2022-5,
    • EN 61010-2-011:2017,
    • EN 61010-1:2010/A1:2019,
    • IEC 61010-2-011:2019.
  • available in 3 volumes: 550l, 400l, 250l brutto
Single laboratory freezer by Mercatus, Bioscience series - Exige

Exige-
provides superior cooling technology that exceeds expectations, providing reliable, easy-to-use and energy-efficient cooling that laboratories and pharmacies can trust. Developed to meet stringent requirements, Exige epitomises the resilience needed to maintain temperatures in healthcare environments.
  • easy to use - intuitive menu for simple training and onboarding,
  • digital display - and flat touch keypad on electronic controller,
  • documentation - of historical temperature compliance,
  • live temperature - monitoring for extra control and peace of mind,
  • integrated alarms - to ensure temperature control is fully maintained,
  • access port (27mm) - for external temperature sensors,
  • hygienic interior - finishing in stainless steel with pressed bottom,
  • adjustable interior - design for grid shelving or drawers,
  • self-closing doors - with easy-clean magnetic sealing gasket,
  • 80mm thermal insulation - with no ODP or GWP,
  • telescopic legs - with optional swivel castors.

Available models

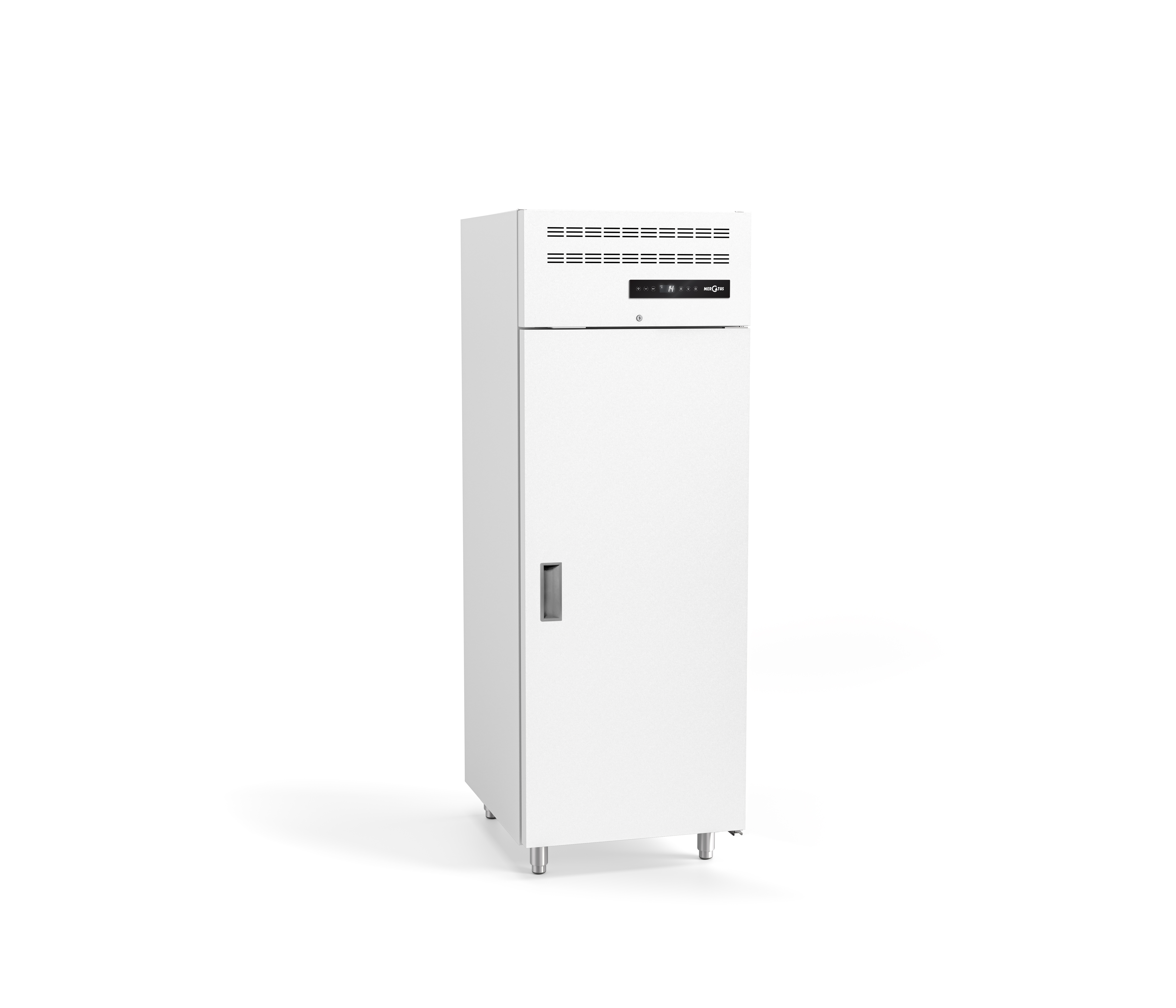

Model EFSS-550 Lab EFSG-550 Lab
features
  • Internal fixing of grid shelves and drawers,
  • integrated alarms in case of deviations,
  • access port for external temperature sensors,
  • natural refrigerant with high cooling capacity,
  • key lock for access control,
  • stainless steel inside and outside
  • Internal fixing of mesh shelves and drawers,
  • integrated alarms in case of deviations,
  • access port for external temperature sensors,
  • natural refrigerant with high cooling capacity,
  • key lock for access control,
  • stainless steel inside,
  • white coating outside
set operating temperature -20°C
temperature range -18°C to -25°C
ambient temperature range +10°C to +40°C
gradient 3°C
exterior dimensions [W x D x H] 720 x 850 x 2040 mm
interior dimensions [W x D x H] 560 x 680 x 1430 mm
gross / net volume 550 / 467 l
power supply 220-240V / 50Hz
power 436W / 0,83A
cooling power 755W
refrigerant fluid R290
cooling system forced-draft
electronic controller interface flat touch keypad with digital display
power failure alarm when power returns
warning signals visual and audiable
external cabinet finishing stainless steel 304 white galvanized steel
internal cabinet finishing stainless steel 441
door solid
internal light LED
interior fitting 4 grid shelves
max. load per shelf 30kg
castors option
lock yes
access port yes - diameter 27 mm

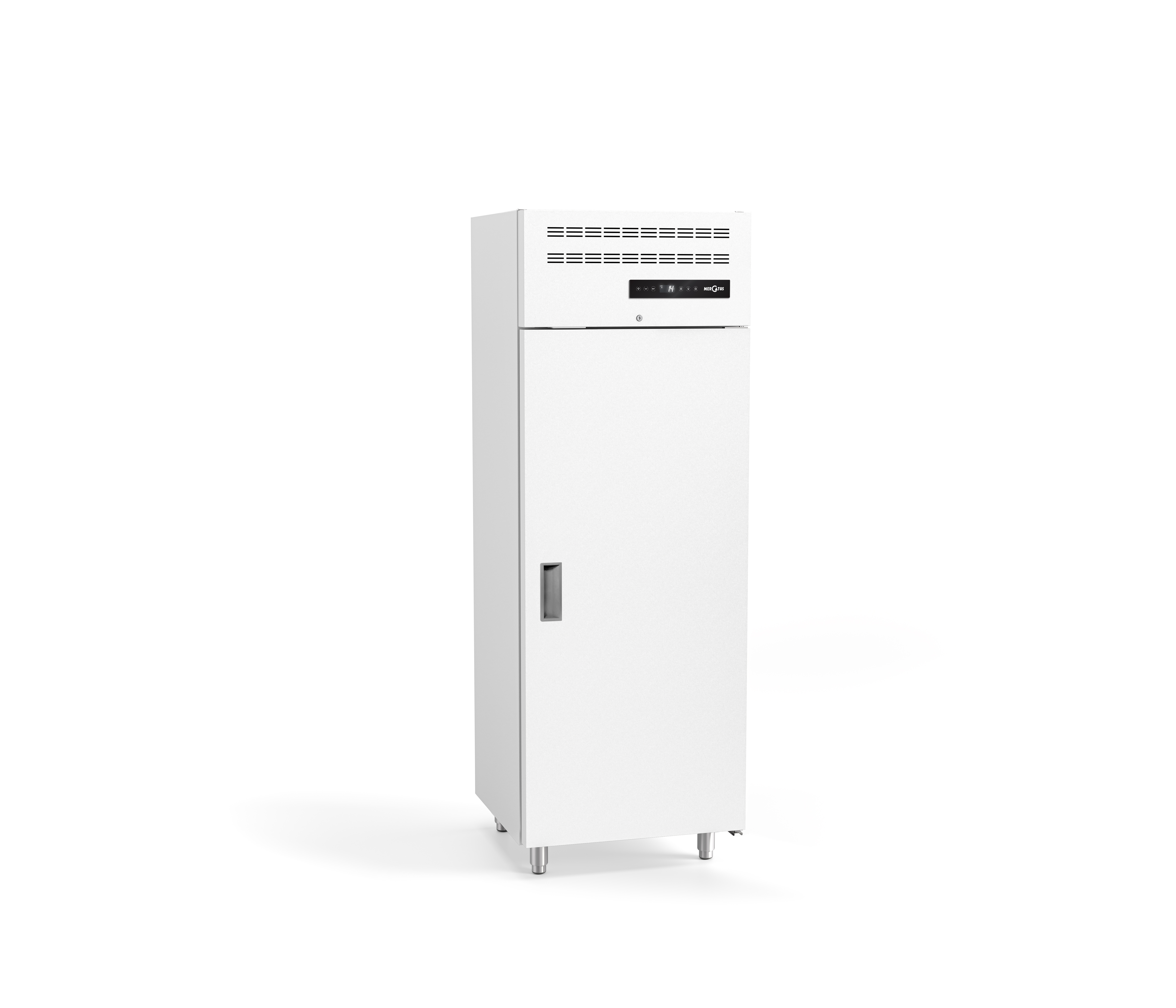

Model EFSS-400 Lab EFSG-400 Lab
features
  • Internal fixing of grid shelves and drawers,
  • integrated alarms in case of deviations,
  • access port for external temperature sensors,
  • natural refrigerant with high cooling capacity,
  • key lock for access control,
  • stainless steel inside and outside
  • Internal fixing of grid shelves and drawers,
  • integrated alarms in case of deviations,
  • access port for external temperature sensors,
  • natural refrigerant with high cooling capacity,
  • key lock for access control,
  • stainless steel inside,
  • white coating outside
set operating temperature -20°C
temperature range -18°C to -25°C
ambient temperature range +10°C to +40°C
gradient 3°C
exterior dimensions [W x D x H] 720 x 700 x 2040 mm
interior dimensions [W x D x H] 560 x 540 x 1300 mm
gross / net volume 400 / 352 l
power supply 220-240V / 50Hz
power 436W / 0,83A
cooling power 755W
refrigerant fluid R290
cooling system forced-draft
electronic controller interface flat touch keypad with digital display
power failure alarm when power returns
warning signals visual and audiable
external cabinet finishing stainless steel 304 white galvanized steel
internal cabinet finishing stainless steel 441
door solid
internal light LED
interior fitting 4 gird shelves
max. load per fhelf 30kg
castors option
lock yes
access port yes - diameter 27 mm

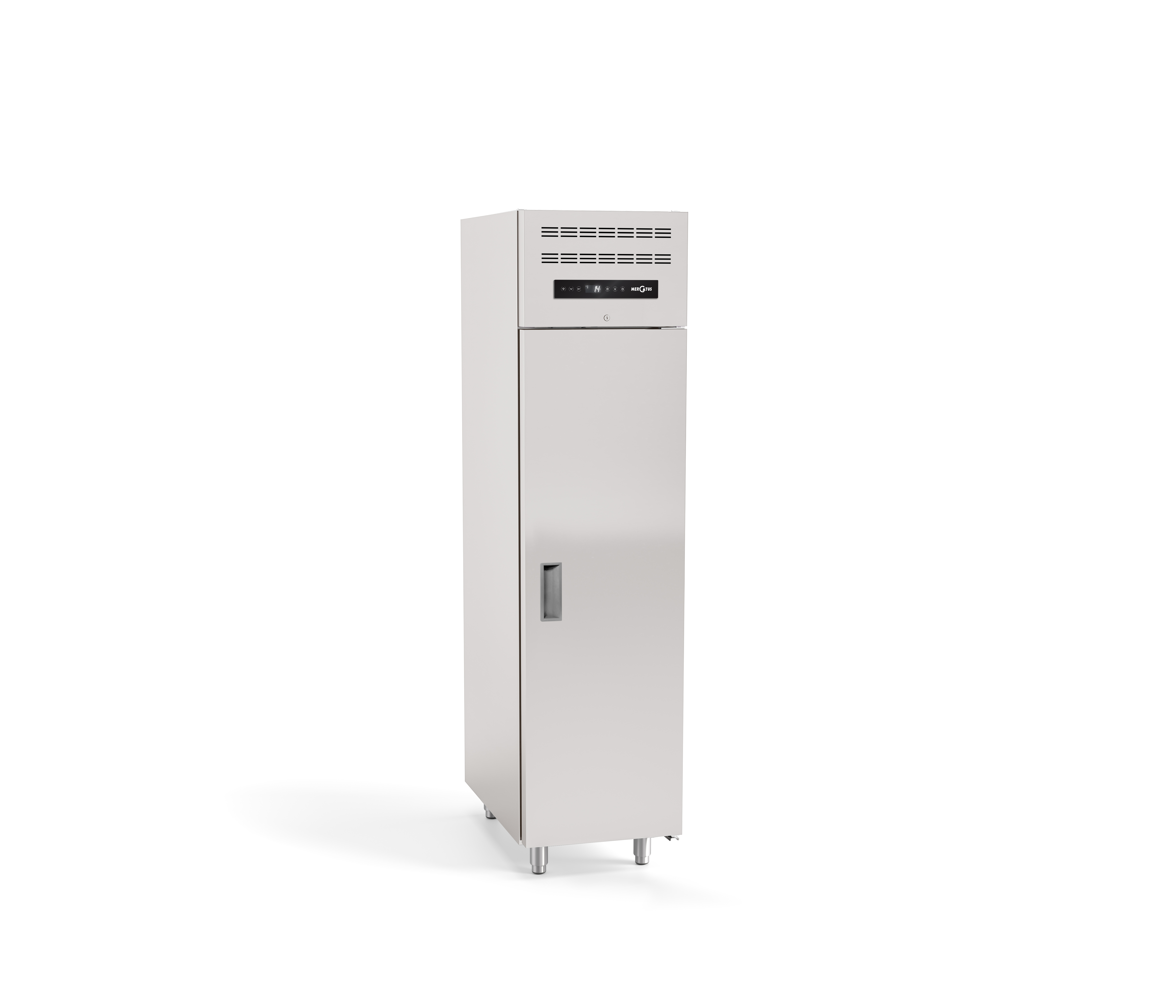

Model EFSS-250 Lab EFSG-250 Lab
features
  • Internal fixing of grid shelves and drawers,
  • integrated alarms in case of deviations,
  • access port for external temperature sensors,
  • natural refrigerant with high cooling capacity,
  • key lock for access control,
  • stainless steel inside and outside
  • Internal fixing of grid shelves and drawers,
  • integrated alarms in case of deviations,
  • access port for external temperature sensors,
  • natural refrigerant with high cooling capacity,
  • key lock for access control,
  • stainless steel inside,
  • white coating outside
set operating temperature -20°C
temperature range -18°C to -25°C
ambient temperature range +10°C to +40°C
gradient 3°C
exterior dimensions [W x D x H] 510 x 700 x 2040 mm
interior dimensions [W x D x H] 350 x 543 x 1300 mm
gross / net volume 250 / 204 l
power supply 220-240V / 50Hz
power 397W / 0,83A
cooling power 490W
refrigerant fluid R290
cooling system forced-draft
electronic controller interface flat touch keypad with digital display
power failure alarm when power returns
warning signals visual and audiable
external cabinet finishing stainless steel 304 white galvanized steel
internal cabinet finishing stainless steel 441
door solid
internal light LED
interior fitting 4grid shelves
max. load per shelf 30kg
castors option
lock yes
access port yes - diameter 27 mm
Model Working temperature Capacity
EFSS-550 Lab -18°C to -25°C  550 l gross / 467 l net
EFSG-550 Lab -18°C to -25°C  550 l gross / 467 l net
EFSS-400 Lab -18°C to -25°C  400 l gross / 352 l net
EFSG-400 Lab -18°C to -25°C 400 l gross / 352 l net
EFSS-250 Lab -18°C to -25°C  250 l gross / 204 l net
EFSG-250 Lab -18°C to -25°C  250 l gross / 204 l net
