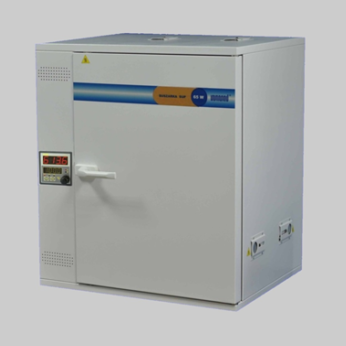

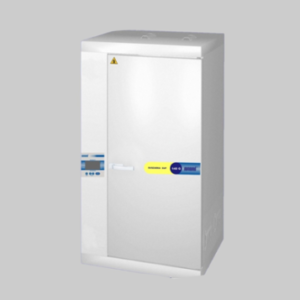

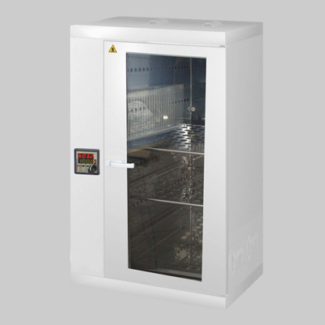

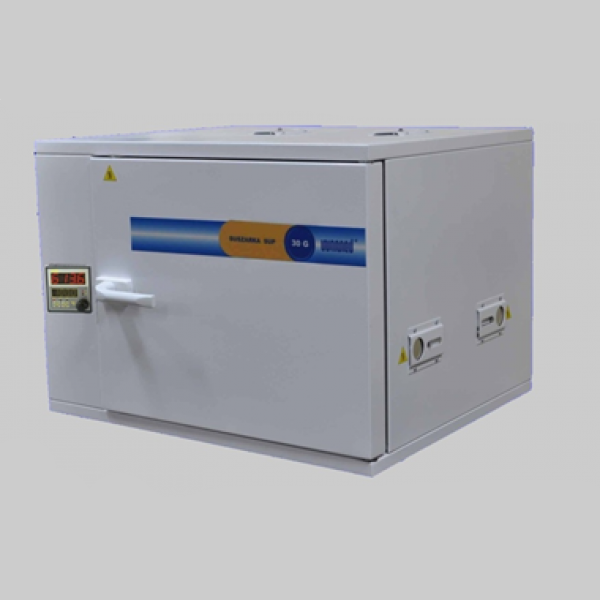

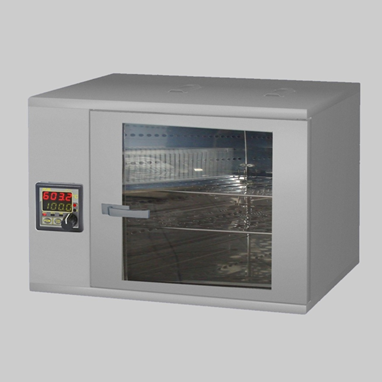

    Wamed G series drying chamber

    Choose Models for offer request

    Product Sheet

    Intended

    • Gravity air circulation
    • PID controller with auto tuning
    • Temperature range in 0.1°C increments of no less than +5°C above ambient temperature up to 250°C
    • Accuracy of temperature stabilization at a point of +/- 2,2°C
    • Possibility to define 1 program
    • Maximum program duration of up to 144 hours
    • Possibility of continuous operation
    • Ventilation stacks



    • Characteristic

    • Available Models

    Wamed drying chambers are the ideal device for drying, heating and other research work requiring elevated temperatures.

    The device is available in 7 capacities: 17, 39, 75, 115, 143, 150, 220 liters.

    It will be perfect for hospitals, laboratories, pharmacies and other units conducting experimental research.

    Electronic control ensures precise selection and distribution of temperature, which is displayed on a clear digital thermometer.

    The drying chamber is equipped with gravity air circulation, which helps maintain the desired temperature.

    Regulation, temperature stabilization and measurement of heating duration occur through the use of reliable microprocessor controllers, so that once the desired temperature is reached, the heating process is interrupted.



    • Additional options:

      • Powder-coated stainless steel housing in white or other color
      • Different temperature setting range (300°C)
      • Keyed lock
      • Pass-through for insertion of additional sensors
      • Sheet metal shelves
      • Double/mounted door on the left side
      • Door with glass window/internal glass door
      • Floor drainer
      • Audible indication of end of operation/open door/open chamber
      • Possibility to define 2 programs
      • Possibility to program linear temperature ramping as a function of time while reaching the set temperature, so called RAMPA
      • Password protected access to configuration parameters
      • Possibility of blocking changes of set values and START/STOP button
      • Possibility of using binary input START/STOP to control time function

    Comparison of available models:

    Technical data 18G 30G 65G 100G 140G 150G 200G
    Volume 17 l 39 l 75 l 115 l 144 l 150 l 220 l
    Rated power 800 W 1000 W 1500 W 2600 W 2200 W 2600 W 3200 W
    Mass 24 kg 35 kg 45 kg 57 kg 79 kg 79 kg 89 kg
    Chamber dimensions 200 x 230 x 400 mm 360 x 230 x 400 mm 360 x 480 x 400 mm 550 x 480 x 400 mm 360 x 960 x 400 mm 720 x 480 x 400 mm 550 x 960 x 400 mm
    Total dimensions 430 x 420 x 495 mm 590 x 420 x 495 mm 590 x 670 x 495 mm 780 x 670 x 495 mm 590 x 1150 x 495 mm 950 x 670 x 495 mm 780 x 1150 x 495 mm
    Air cirulation gravit gravity gravity gravity gravity gravity gravity
    Shelves 1 sheet metal shelf 1 wire shelf 2 wire shelves 2 wire shelves 3 wire shelve 2 sheet metal shelves 3 wire shelves







    Model Capacity Mass Dimensions Power
    18 G 17 l 24 kg 430x420x495 mm 800 W
    30 G 39 l 35 kg 590x420x495 mm 1000 W
    65 G 75 l 45 kg 590 x 670 x 495 mm 1500 W
    100 G 115 l 57 kg 780 x 670 x 495 mm 2600 W
    140 G 144 l 79 kg 590 x 1150 x 495 mm 2200 W
    150 G 150 l 89 kg 950 x 670 x 495 mm 3200 W
    200 G 220 l 89 kg 780 x 1150 x 495 mm 3200 W
