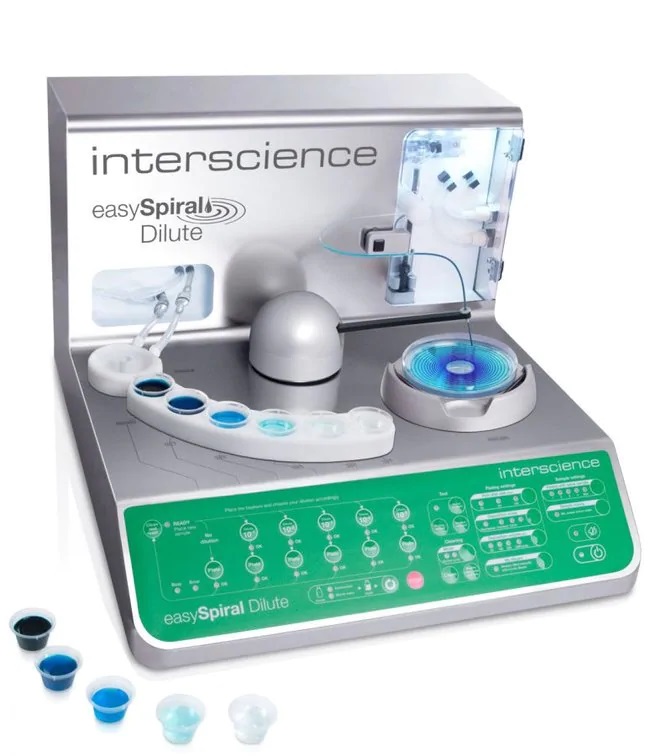

Automatic dilutor and plater easySpiral Dilute
Choose Models for offer request
Intended
- Quick access panel for routine serial dilutions and cultures
- Any number of dilutions
- Fast: disinfection, 5 dilutions and 1 culture in 134 sec.
- 50% less consumables and time
Characteristic
Available Models
EasySpiral Dilute is a 2-in-1 device: automatic diluter and culture plate. It allows you to perform 5 x serial 1/10 dilutions and automatic culture on 1 single Petri dish, with a countable range of 30 to 1x1012 CFU / ml.
Main Features:
- Controlled by microprocessor
- Petri dish diameter: 55 mm, 90 mm and 150 mm
- Syringe capacity: 1000 µL
- Programmable dispensed volume: from 10 µL to 1000 µL
- Dispensed preset volume: 50 µL, 100 µL and 200 µL
- Counting range: from 30 to 1x1012 CFU / ml
- Plating modes: exponential, constant, circular, infusion
- 1 disinfection + 5 dilutions + 1 sample collection + 1 culture 1 dilution: 134 sec.
- 1 disinfection + 5 dilutions + 1 sampling + 1 culture of each dilution: 234 sec.
- Filling time (for different sample viscosities) and volume programmable via USB
- Mixing of samples before dilution / seeding
- Traceability: Excel ™, LIMS
- Patented wheel mode: 3 dilutions on 90 mm Petri dish, 6 dilutions on 150 mm Petri dish
- Stylus disinfection system by overflow, 8 bar pressure (patented)
- Capacity of consecutive plates with the same sample: 20 Petri dishes (50 µL)
- Compatible with dataLinkTM traceability system
Main Features:
- Controlled by microprocessor
- Petri dish diameter: 55 mm, 90 mm and 150 mm
- Syringe capacity: 1000 µL
- Programmable dispensed volume: from 10 µL to 1000 µL
- Dispensed preset volume: 50 µL, 100 µL and 200 µL
- Counting range: from 30 to 1x1012 CFU / ml
- Plating modes: exponential, constant, circular, infusion
- 1 disinfection + 5 dilutions + 1 sample collection + 1 culture 1 dilution: 134 sec.
- 1 disinfection + 5 dilutions + 1 sampling + 1 culture of each dilution: 234 sec.
- Filling time (for different sample viscosities) and volume programmable via USB
- Mixing of samples before dilution / seeding
- Traceability: Excel ™, LIMS
- Patented wheel mode: 3 dilutions on 90 mm Petri dish, 6 dilutions on 150 mm Petri dish
- Stylus disinfection system by overflow, 8 bar pressure (patented)
- Capacity of consecutive plates with the same sample: 20 Petri dishes (50 µL)
- Compatible with dataLinkTM traceability system
| Model | Description |
|---|---|
| easySpiralDilute | Plating modes: exponential, constant, circular, gating |
