Scotsman ice flake makers

Choose Models for offer request

EF103

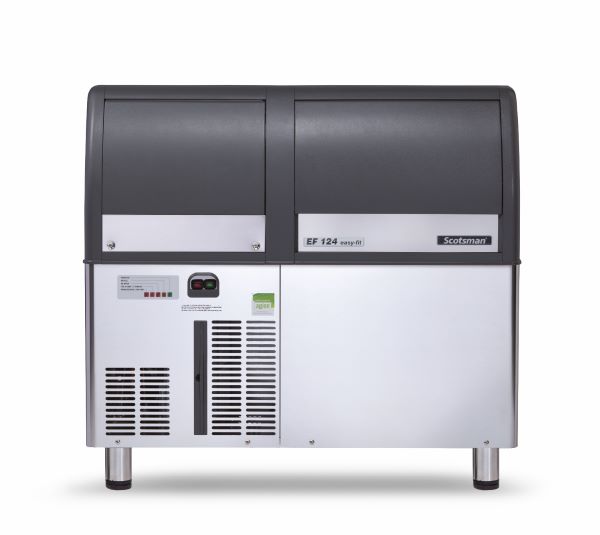

EF124
EF156
EF206

Product Sheet

Intended

Electronic control with auto-diagnostics and alarm indication
Housing made of aesthetically pleasing and carefully finished stainless steel
Robust AISI304 stainless steel evaporator, AISI430 stainless steel screw
Removable panels on all sides in MF series
Ergonomic access to ice through sliding doors on AF and EF series
Hermetic compressor
External indicator lights indicating ice maker operation.
Optimum water and power consumption

Characteristic
Available Models

Flake (granular) ice generators produce ice in its most natural form, made at temperatures just below zero degrees Celsius. Production with Agion technology makes the unit cleaner and more durable, thanks to built-in protection that works 24/7 to prevent the growth of microorganisms and unpleasant odors. Flake ice of Flake type contains 20-25% water, and Superflake type contains 15% water, making it very moist. Its shape makes it incredibly versatile and easy to use effectively. Suitable for medical and laboratory applications.

AF series with gravity drain - with built-in tanks.
EF series with water pump - with forced condensate drainage.
MF series - modular flake ice makers.

Model	EF103	EF124	EF156	EF206
Ice type	Flake	Flake	Flake	Flake
Tank capacity[kg]	30	40	60
Dimensions W x D x H [mm]	592 x 622 x 977	950 x 605 x 795	950 x 605 x 1006
Cooled condenser	air / water	air / water	air / water	air / water
Efficiency [kg/24h]	108	120	160	200
Water content	25%	20%
Built-in tank	yes	yes	yes	yes

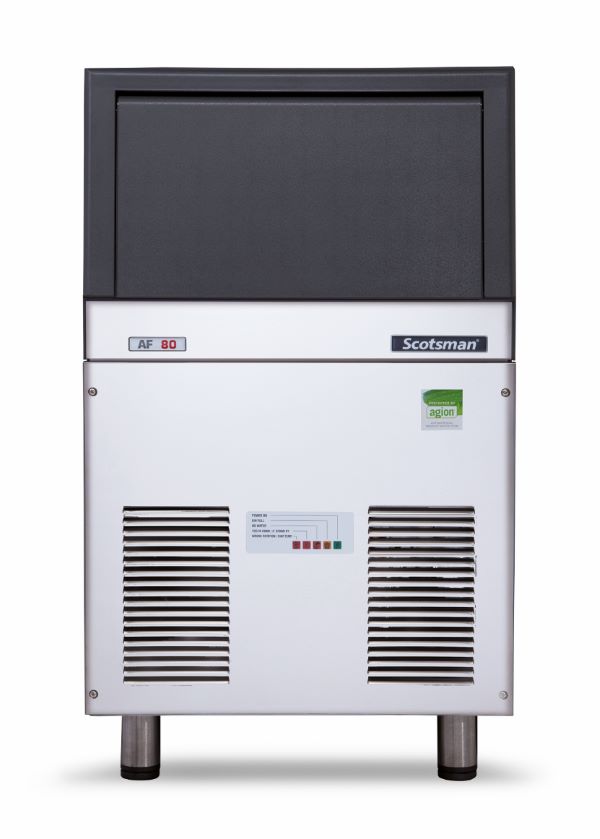

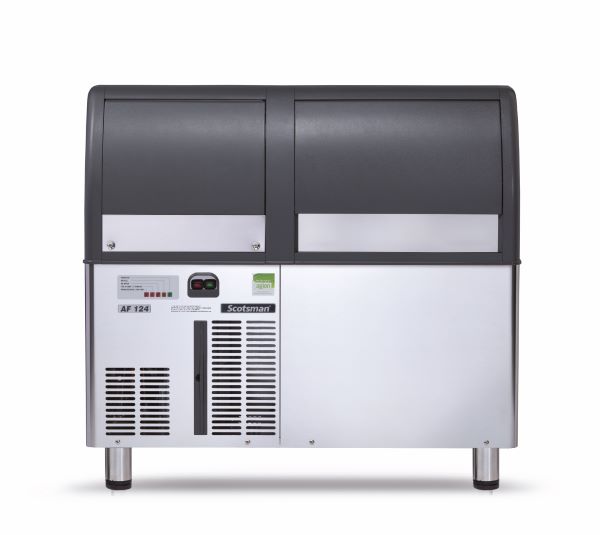

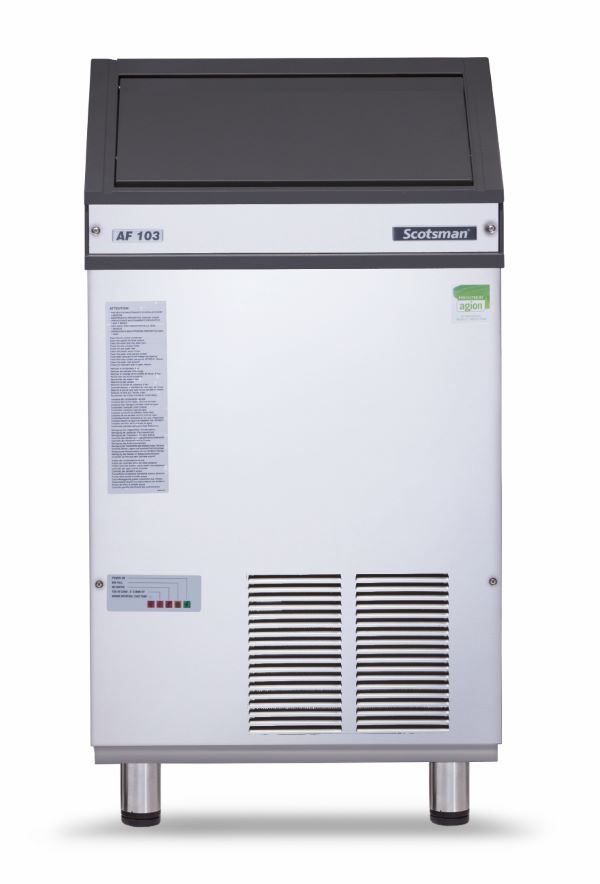

Model	AF80	AF103	AF124	AF156	AF206
Ice type	Flake	Flake	Flake	Flake	Flake
Tank capacity [kg]	25	30	40	60
Dimensions W x D x H [mm]	535 x 626 x 800	592 x 622 x 977	950 x 605 x 795	950 x 605 x 1006
Cooled condenser	air / water	air / water	air / water	air / water	air / water
Efficiency [kg/24h]	73	108	120	160	200
Water content	25%		20%
Built-in tank	yes	yes	yes	yes	yes

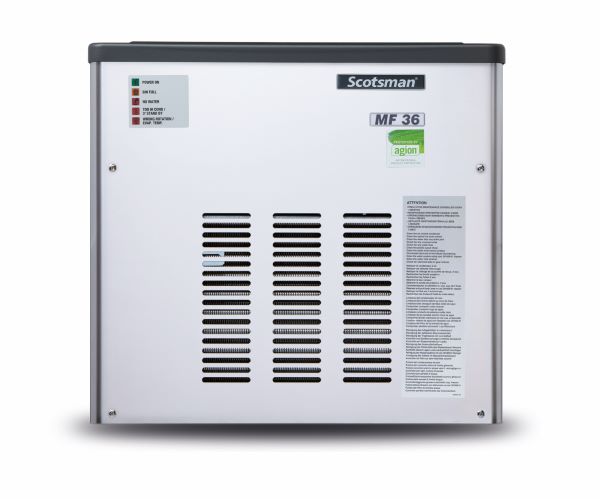

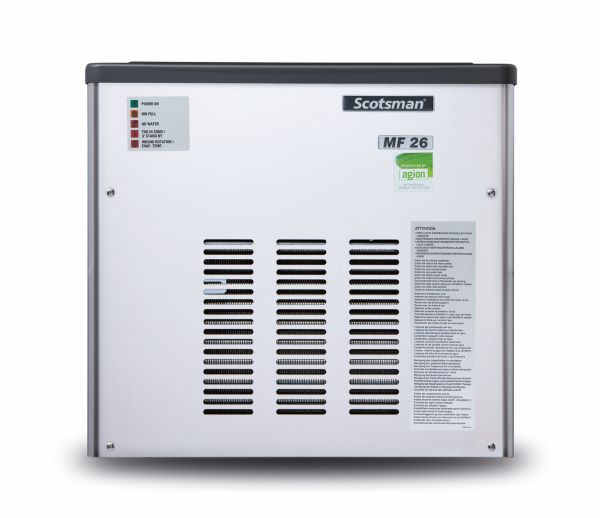

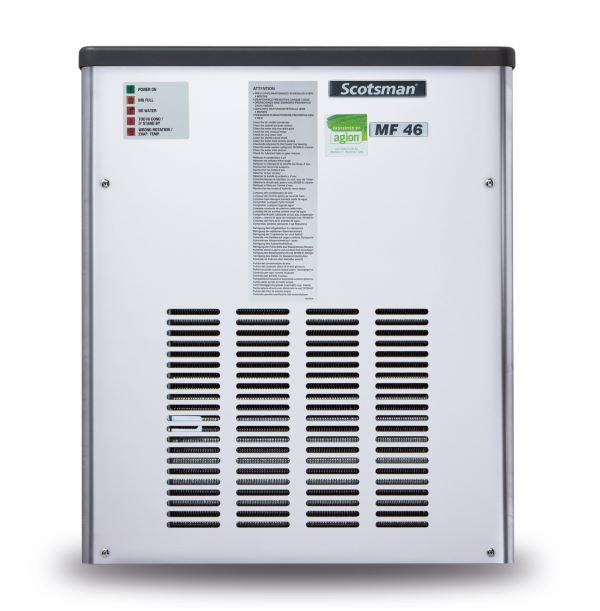

Model	MF26	MF36	MF46	MF56
Ice type	Flake	Flake	Superflake	Superflake
Dimensions W x D x H [mm]	564 x 536 x 531	564 x 536 x 531	538 x 663 x 650	538 x 663 x 790
Cooled condenser	air / water	air / water	air / water	air / water
Efficiency [kg/24h]	120	200	330	600
Water content	25%	25%	15%	15%
Built-in tank	no	no	no	no

Model	Dimensions
EF103	W592 x D622 x H977 mm
EF124	W950 x D605 x H795 mm
EF156	W950 x D605 x H1006 mm
EF206	W950 x D605 x H1006 mm
