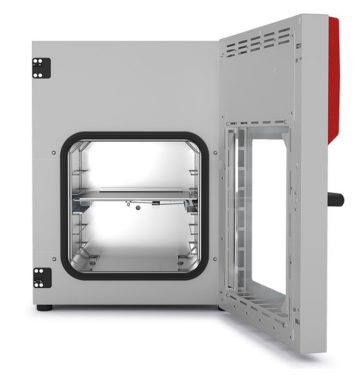

Binder VD Series vacuum drying chamber
Choose Models for offer request
Intended
- Temperature range: ambient temperature +9°C to 220°C
- Controller with digital display of pressure and temperature
- Control by program monitoring drying with automatic aeration at the end of the process
- Internal data logger, measurement values in open format readable via USB
- 1 aluminum spreader shelf, individually positionable
- Inert gas connection
- Safety glass pane, spring-mounted, with splash protection
- Large vision window, optionally with interior lighting
- Interface for computer connection: Ethernet
- 2 relay outputs 24 V DC (max. 0.4 A)
Characteristic
Available Models
Binder vacuum drying chambers guarantee efficient and gentle drying without endangering the dried materials.
The specification includes the most important features for efficient and safe vacuum drying for non-flammable solvents meeting the requirements of users.
BINDER vacuum units provide reliable and fast drying of samples in the temperature range from 9 °C to 220 °C.
Binder drying chambers meet the highest standards of safety, quality and performance. The device enables fast, efficient and gentle drying of samples at homogeneous temperatures as well as condensate-free drying.
The use of overdrive-proof control guarantees an excellent safety system.
Binder vacuum drying chambers are characterized by short drying time, durability and solid workmanship. They are perfect for laboratories, industrial and scientific facilities.
The interior consists of highly anti-corrosive stainless steel, which is not only resistant, but also easy to clean.
Ease of maintenance is ensured by a smooth inner compartment with rounded edges, in addition, there is the possibility of individual organization of shelves and disassembly for cleaning.
Comparison of available models:
| Technial data | VD23 | VD56 | VD115 |
| Volume | 24 l | 55 l | 119 l |
| Net mass | 68 kg | 101 kg | 146 kg |

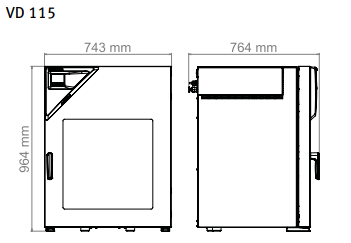

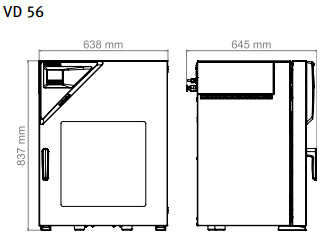

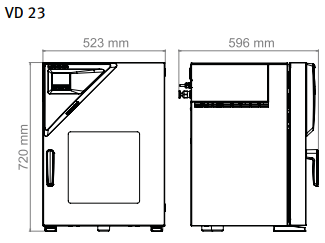

| Housing dimensions | 523 x 698 x 413 mm | 638 x 815 x 416 mm | 743 x 942 x 581 mm |
| Chamber dimensions | 285 x 285 x 295 mm | 400 x 400 x 343 mm | 506 x 506 x 460 mm |
| Temperature range | 9°C above ambient temperature to 220 °C | 9°C above ambient temperature to 220 °C | 9°C above ambient temperature to 220 °C |
| Spatial variation of tempeature at 100°C | 1 ± K | 1,5 ± K | 2,9 ± K |
| temperature fluctuation | 0.1 ± K | 0.1 ± K | 0,1 ± K |
| Heating up time at 100 °C | 80 min | 80 min | 130 min |
| Model | Capacity | Mass | Dimensions |
|---|---|---|---|
| VD 23 | 24 l | 68 kg | 523 x 698 x 413 mm |
| VD 56 | 55 l | 101 kg | 638 x 815 x 461 mm |
| VD 115 | 119 l | 146 kg | 743 x 942 x 581 mm |
