HT Lysing Ball Homogenizer

Choose Models for offer request

Intended

  • High throughput
  • Linear movement
  • High speed
  • Ideal for multiple samples
  • 5 factory preset programs
  • LED display for viewing speed and time settings

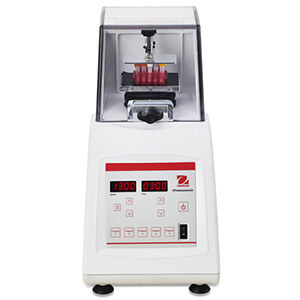

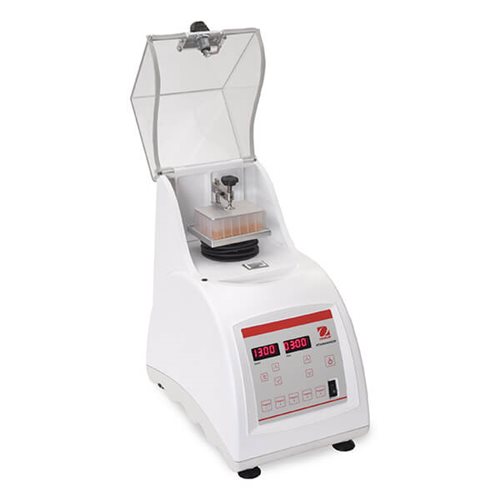

The OHAUS laboratory ball homogenizer is a powerful solution for grinding, lysing, grinding, mixing and homogenizing samples. It is ideal for DNA, RNA and protein analysis (from mammalian tissue, plants, soil, seeds, fungi, bacteria, viruses and other cells), cell lysis, PCR, or gene expression. Performed at high speed, the linear motion enables rapid sample processing.

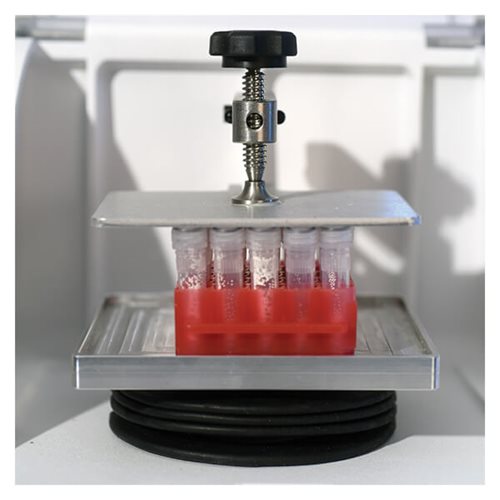

Equipped with an easy-to-load tray, securing the microplate, well plate or tube in place.

Benefits of the device:

  • Supports a wide variety of sample and tube configurations
When it comes to efficient grinding, our high throughput lysing homogenizer is one of the most flexible models on the market. The built-in adjustable handle makes it easy to process samples without the need for accessories.
  • Increased productivity due to high sample processing throughput
This versatile homogenizer provides high-throughput grinding and is ideal for processing multiple test tubes, microplates, well plates and other sample containers that fit into a 10.2x12.7x6.4 cm holder.
  • Choose the optimal speed and time using 5 factory programs
No more guesswork during sample preparation. Five preloaded programs optimized for speed and time allow you to easily process the most commonly tested samples, such as bacteria, fungi, and plant and animal tissues.


Specific Features:

- Display: An easy-to-read LED display allows the operator to view speed and time settings.

- Programs: DNA, RNA and protein analysis (from mammalian tissue, plants, soil, seeds, fungi, bacteria, viruses and other cells), cell lysis, PCR, gene expression.

- Power: Five buttons with preset programs, plus speed and time control via touchpad.

- Communication: N/A.

- Construction: Polyurethane elastomer upper housing, Cycoloy lower housing and Lexan cover.

- Design features: The microprocessor-controlled unit is equipped with a sample clamp and allen key.


Selected additional accessories (ordered separately):

- Yellow screw-top tube (yeast) 2 ml, DNase/RNase free, 400 μm Zirconium, pack. 100 pcs. / Cat. no. 30391404,
- Blue screw-top tube (fungi) 2 ml, DNase/RNase free, 800 μm Zirconium, pack. 100 pcs. / Cat. no. 30391405,
- Orange screw-top tube (soft samples) 2 ml, DNase/RNase free, 1.4mm Zirconium beads, pack. 100 pcs.b / Cat. no. 30391406


Technical data:

Model HOHTDG
Speed range [rpm] 300 - 1600  (step 1)
Movement recipocating motion, 31 mm
Clock from 1 sec to 10 min (increments of 1 second)
Program 1 5 min at1 500 rpm
Program 2 2 min at 1500 rpm
Program 3 3 min at 1300 rpm
Program 4 4 min at 1500 rpm
Program 5 1 min at 1600 rpm
Full weights range 1 well plate, 4 microplates and any tube matrix, fits in an adjustable holder measuring 10,2 x 12,7 x 6,4 cm
Max. volume [g] 300
Work conditions 5°C– 40°C, 20%– 85% RH, non-condensing
Dimensions [L x W x H] cm 44,6 × 28,6 × 51,8
Net mass [kg] 34
Catalog no 30391396



Additional accessories ordered separately
* Yellow screw-top tube (yeast) 2 ml, DNase/RNase free, 400 μm Zirconium, pack 100 pcs  30391404
Blue screw-top tube (fungi) 2 ml, DNase/RNase free, 800 μm Zirconium, pack 100 pcs   30391405
Orange capped tube (soft samples) 2 ml, DNase/RNase free, 1,4mm kulki Zirconium, pack 100 pcs 30391406
Green screw-top tube (plant tissue) 2 ml, DNase/RNase free, 3mm Zirconium, pack 100 pcs 30391408
Red screw-top tube (animal tissues) 2 ml, DNase/RNase free, 3mm kulki Stal nierdzewna, pack 100 pcs   30391409
Brown screw-top tube (anvironmental) 2 ml, DNase/RNase free, 100 μm/800 μm/3 mm Zirconium, pack 100 pcs  30391410
Test tube rack, 25 tubes × 2 ml, pack 2 pcs   30391431
Set of test tubes, 14 pcs two each of whie, yellow, blue, orange, green, red and brown    30391433
Model Speed ​​[rpm]
HOHTDG From 300 to 1600 rpm (increments of 1 rpm)
