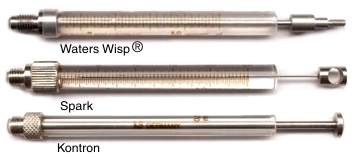

Syringes for HPLC, autosampler WATERS, Spark, Kontron
Characteristic
Available Models
Syringes for HPLC, autosampler WATERS, Spark, Kontron
In the request for quotation, the parameters listed in the table should be providedi
Volume | Series | Front Fitting / Plunger Top | |
25 µl | H | 1/4"-28UNF / 4-40UNC | 2663514 |
250 µl | H | 1/4"-28UNF / 4-40UNC | 2663814 |
Spark | |||
Volume | Series | Front Fitting | |
25 µl | H | 1/4"-28UNF | 2608517 |
50 µl | H | 1/4"-28UNF | 2608617 |
100 µl | H | 1/4"-28UNF | 2608717 |
250 µl | H | 1/4"-28UNF | 2608817 |
500 µl | H | 1/4"-28UNF | 2608917 |
1.0 ml | H | 1/4"-28UNF | 2608017 |
Kontron | |||
Volume | Series | Front Fitting | |
250 µl | H | M8x0,75 | 2652816 |
500 µl | H | M8x0,75 | 2652916 |
1.0 ml | H | M8x0,75 | 2652016 |
2.5 ml | H | M8x0,75 | 2652036 |
