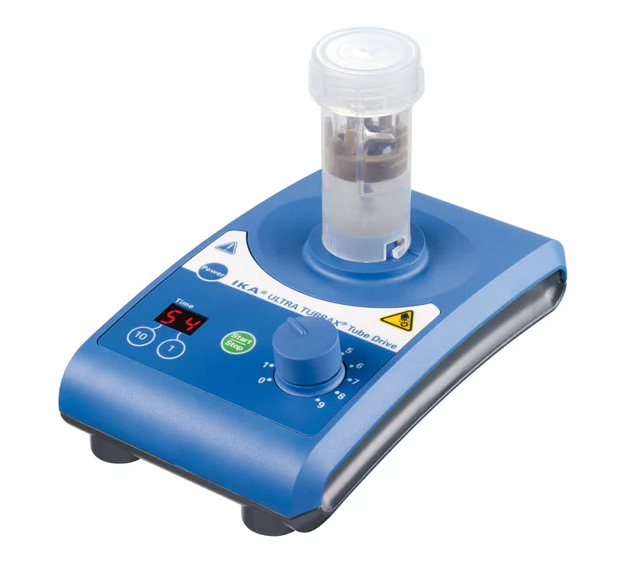

Ultra-Turrax Tube Drive Homogenizer
Choose Models for offer request
Intended
- Speed range up to 8000 rpm
- Batch homogenizer
- Protection against cross contamination
- Homogenization, mixing, grinding
Characteristic
Available Models
The Ultra-Turrax Tube Drive System is used for homogenization and grinding in sealed, disposable vessels. Protection and safety when working with: infectious samples, toxic substances and, under certain conditions of time, energy and volume, highly malodorous substances.
Application: Human and veterinary medicine, pathology, livestock hygiene institutes, food testing laboratories, toxicology, medical and pharmaceutical and biological research, cancer biology, chemistry and cosmetic industry.
- Dispersing, mixing, homogenizing and grinding with a single unit
- Protection against cross-contamination
- Hermetic, disposable sample vessels
- No cleaning required
- High degree of operating safety
- Suitable for stand-alone and in-line work
- Gamma-sterilized vessels
- Capped vessels with membrane for needles
- Vessels with capacities of 2 - 15 ml and 15 - 50 ml
- Repeatability of the test
- Patented
Application: Human and veterinary medicine, pathology, livestock hygiene institutes, food testing laboratories, toxicology, medical and pharmaceutical and biological research, cancer biology, chemistry and cosmetic industry.
| Technical data | UTTD Tube Drive | UTTD Tube Drive Workstation | UTTD Tube Drive P Control | UTTD Tube Drive P Control Workstation |
| Process type | batch | |||
| RPM range | 300-6000 rpm | 300-6000 rpm | 400-8000 rpm | 400-8000 rpm |
| Timer | - | - | OLED | OLED |
| Noise without elements | 50dB(A) | |||
| Reversible direction of rotation | - | - | Yes | Yes |
| Maks. viscosity | 5000 mPas | |||
| Dimensions (W x H x D) | 100 x 40 x 160 mm | 100 x 40 x 160 mm 270 x78 x 225 mm |
122 x 54 x 178 mm | 122 x 54 x 178 mm 270 x 78 x 225 mm |
| Protection class in accordance with DIN En 60529 | IP 20 | |||
| Model | Dimensions |
|---|---|
| UTTD Tube Drive | 100 x 40 x 160 mm |
| UTTD Tube Drive Workstation | 100 x 40 x 160 mm, 270 x78 x 225 mm |
| UTTD Tube Drive P Control | 122 x 54 x 178 mm |
| UTTD Tube Drive P Control Workstation | 122 x 54 x 178 mm, 270 x 78 x 225 mm |
