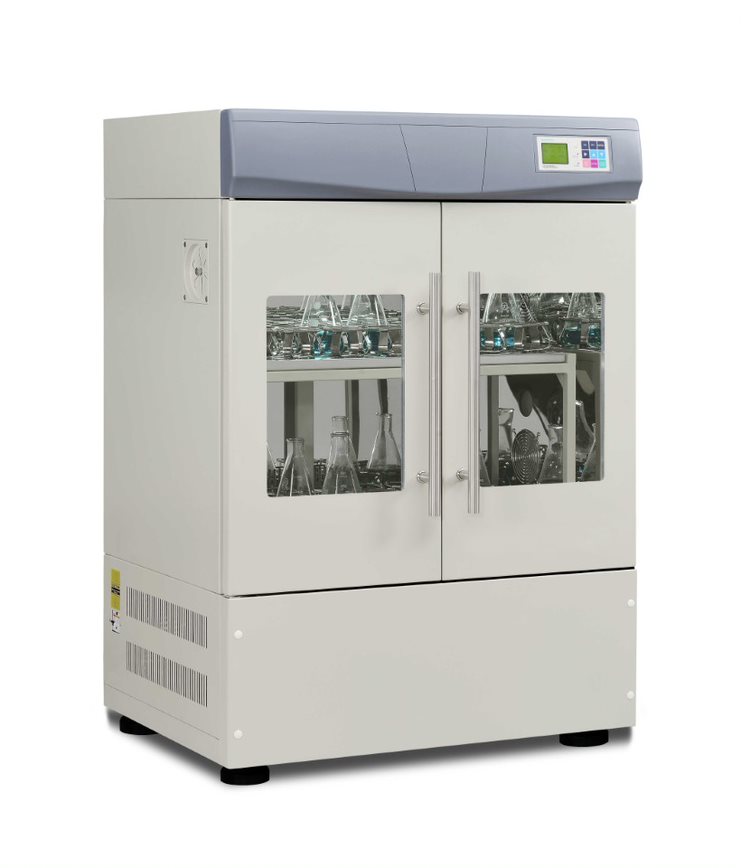

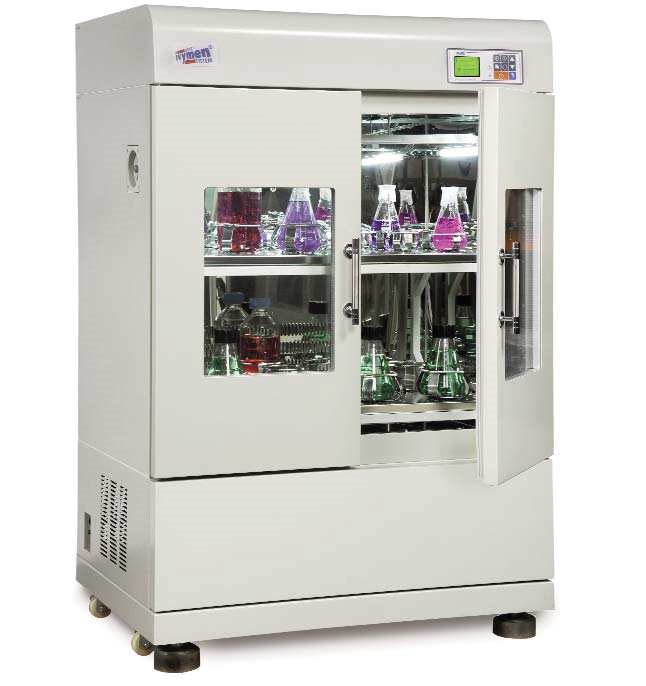

Series S shaking incubators

Choose Models for offer request

Product Sheet

Intended

DOCUMENTS TO DOWNLOAD:
PRODUCT SHEET EN

Metal outer casing coated with epoxy resin
Digital readout of current and set parameters: temperature, time and speed
Audible alarm and illuminated indicator at the end of the cycle, as well as indicating temperature and/or time program errors
Automatic shut-off mechanism when the shaker door is opened
Motor overload protection, with automatic shutdown activation
Induction motor, where the drive mechanism has an anti-vibration system
Refrigerated models have hermetically sealed compressor with vented condenser
Internal housing made of AISI 316 stainless steel with polished finish and glass door for convenient visibility of the sampling process
Internal platform with multiple adapter positions for a variety of accessories such as conical flask adapters, microtitration plate holders and a universal tray with adjustable tension springs for other custom vessel sizes

Technical data:

Model	S100D	S200D	S1102	S2102
Amplitude	Smooth adjustment from 0 to 50 mm		25 mm
Speed range	30 to 400 r.p.m.	30 to 400 r.p.m.	40 to 300 r.p.m.	40 to 300 r.p.m.
Speed adjustment	every 1 r.p.m	every 1 r.p.m	every 1 r.p.m	every 1 r.p.m
Cooling	no	yes	no	yes
Heating	yes	yes	yes	yes
Temperature range	+5°C above ambient to +60°C	+5 °C to +60°C	+5°C above ambient to +60°C	+5°C to +60°C
Temperature regulation	every 0,1°C	every 0,1°C	every 0,1°C	ever 0,1°C
Temperature uniformity in the chamber	±1°C	±1°C	±1°C	±1°C
Timer	0 to 500 hours	0 to 500 hours	0 to 500 hours	0 to 500 hours
Usable dimensions of the platform	370 x 400 mm	420 x 380 mm	734 x 458 mm	734 x 458 mm
Number of platforms	1	1	2	2
Maximum volume of conical flasks	6 x 1000 ml, or 9 x 500 ml, 12 x 250 ml, or 16 x 100 ml, 20 x 50ml	9 x 1000 ml, or 9 x 500 ml, or 16 x 250 ml, or 20 x 100 ml, or 25 x 50 ml	4 x 5000 ml, or 8 x 3000 ml, or *8 x 2000ml, or 24 x 1000 ml, or 44 x 500 ml, or 56 x 250 ml, or 104 x 100 ml, or 104 x 50 ml
Diemensions H x W x D	610 x 610 x 510 mm	700 x 740 x 560 mm	1440 x 950 x 700 mm	1440 x 950 x 700 mm
Weight	72 kg	100 kg	200 kg	235 kg
Power	490 W	580 W	930 W	1200 W

* The upper tray is divided into two removable sections to accommodate large capacity Erlenmeyer flasks: 2,000 to 5,000 ml.

Model	Speed range [rpm]	Dimensions	Scale
S100D	30-400	610 x 610 x 510 mm	72 kg
S200D	30-400	700 x 740 x 560 mm	100 kg
S1102	40-300	1440 x 950 x 700 mm	200 kg
S2102	40-300	1440 x 950 x 700 mm	235 kg
